Back-Roller Free Single

The Back-Roller Free is based on the ever-popular Back-Roller, which has proven itself millions of times. The Free line does not use PVC, but does not compromise on performance either. Through the use of robust polyester fabric, the waterproof rear pannier becomes a long-lasting companion while maintaining the same timeless tarpaulin look. And thanks to the hermetic roll-top closure, food and gear travels safely and protected from the elements.

Halterungssystem: QL 2.1

QL 2.1 QL 3.1

SKU: F5111

$110

Tax excluded. at checkout

The Back-Roller Free is based on the ever-popular Back-Roller, which has proven itself millions of times. The Free line does not use PVC, but does not compromise on performance either. Through the use of robust polyester fabric, the waterproof rear pannier becomes a long-lasting companion while maintaining the same timeless tarpaulin look. And thanks to the hermetic roll-top closure, food and gear travels safely and protected from the elements.New also is the option of a rear pannier featuring the Quick-Lock3 mounting system. The Back-Roller Free QL 3.1 is equipped with the practical, self-locking ORTLIEB Quick-Lock3.1 system, which allows the bag to be hooked on more conveniently and quickly than ever before. A quick swivel and the bag is attached and locked in no matter how bumpy the ride gets. The fastening hooks lock automatically when they are hooked in - and unlock automatically when the bag is lifted. The Quick-Lock3.1 assembly set is equipped with three attachment points and can be attached to any standard luggage rack. The height and inclination can be adjusted individually. The locking elements on the back of the bag are flat and ideal for everyday use.A fixed inner pocket, consisting of a main compartment and a mesh pocket with a zipper, ensures order and overview. Matching accessories such as the Commuter Insert or Packing Cubes further expand the functionality of the Back-Roller Free. With the shoulder strap, the Back-Roller Free can be carried comfortably as a shoulder bag. The waterproof bike bag is PVC-free and sustainably made in Germany.

Specifications

Height: 16.5 in
Width: 12.6 in
Depth: 6.7 in
Volume: 20 L
Load: 19.8 lb
Weight: 32.6 oz

Downloads

Instruction
Datasheet

360° View

View product in 360°

Warnings and safety information

Risk of injury due to incorrectly attached products! Before riding, check that the product is securely fastened.
Risk of injury due to loose risers! Pull the carrying straps tight before each journey or stow them safely.
Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 100 km, 500 km, 1000 km and 1500 km and retighten them if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 9 kg. If necessary, weigh your load to ensure that you do not exceed the maximum payload.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Our mounting systems in comparison

The QL mounting systems on ORTLIEB panniers allow fast and secure mounting on racks. They are referred to as self-locking fixing systems, for the panniers provided with this system can be mounted to the racks in an easy and safe manner. In case of damage all components can be replaced easily.

Quick-Lock2.2

Making good things even better – that was the goal in developing the Quick-Lock system, proven millions of times over. The result is Quick-Lock2.2, even easier to handle, more comfortable, and more robust.

Quick-Lock3.1

The QL3.1 system is especially developed for office and city bags an its secret lies in the fact that the main mounting components stay on the rack. This results in a smooth rear side of the bag that is free of protruding hooks, and significantly improves the bag’s carrying comfort when off the bike.

Quick-Lock2.1

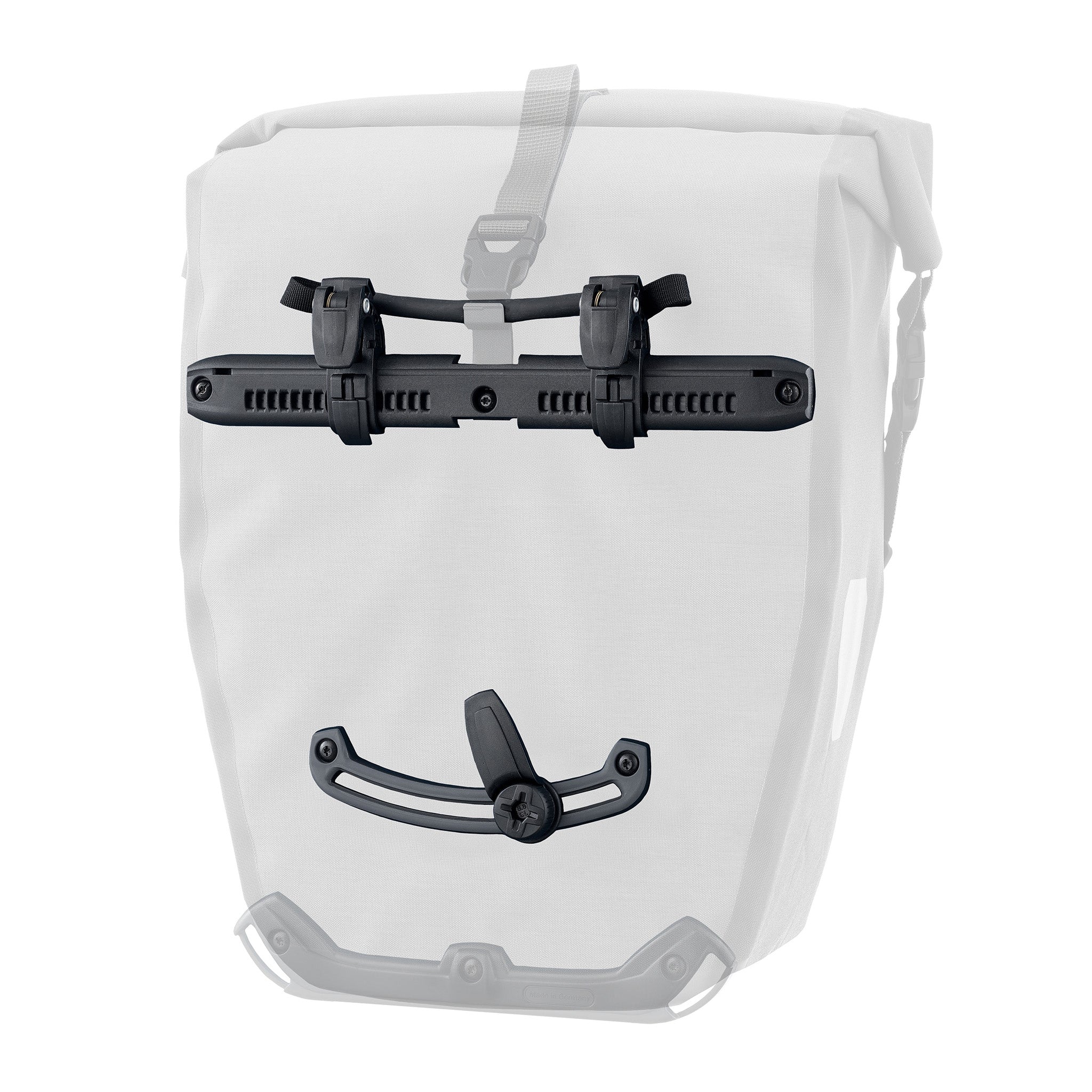

This mounting system for bike panniers is the further development of ORTLIEB’s milestone setting QL1 system. All hooks are adjustable to the rack without requiring any tools. Therefore, the panniers can be easily switched from one bike to another.

Max. load capacity

12.5 kg

Max. load capacity

9 kg

Max. load capacity

9 kg

Tube diameter

Stepless adjustable from 8 to 16 mm without reducers

Tube diameter

All QL3.1-compatible luggage racks; max. 10 mm when using the mounting kit and max. 16 mm with mounting clamps

Tube diameter

8, 10, 12, 16 mm with reducers, up to 20 mm with large hooks
