Handlebar Bags

Overview

The QL mounting systems on ORTLIEB panniers allow fast and secure mounting on racks.

They are referred to as self-locking fixing systems, for the panniers provided with this system can be mounted to the racks in an easy and safe manner. In case of damage all components can be replaced easily.

There are the existing types:

ORTLIEB handlebar mounting set with a compact black bracket, designed for attaching accessories or bags to a bicycle handlebar. Handlebar Mounting Set
ORTLIEB handlebar mounting system bar-lock with adjustable straps and designed for quick attachment of handlebar-bags Bar-Lock

Handlebar Mounting-Set

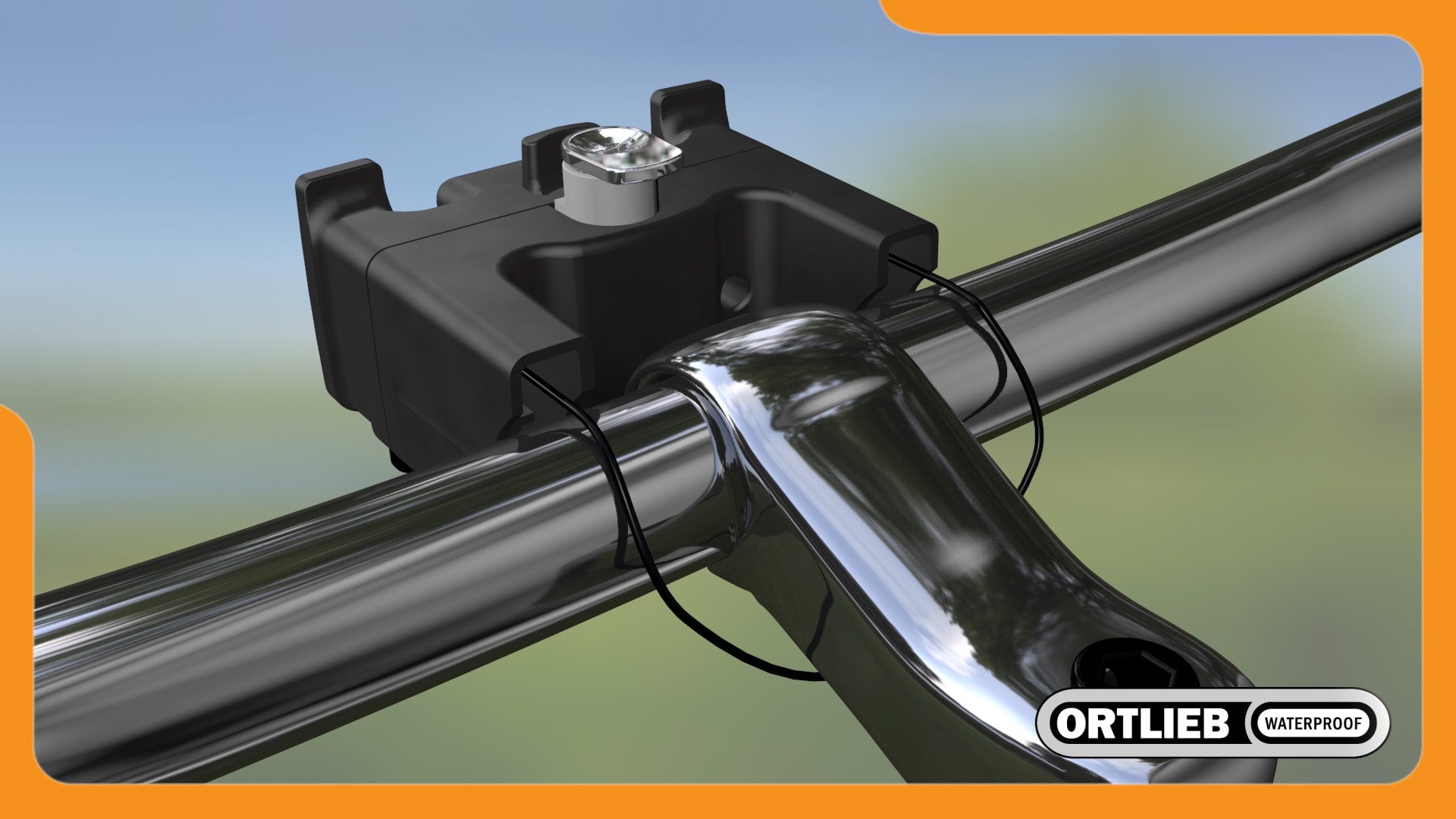

Our universal mounting set for mounting your handlebar bag to all conventional handles. How to attach the mounting set to the handlebar, please watch the video.

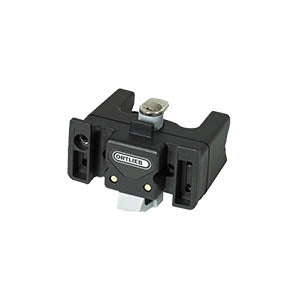

ORTLIEB handlebar mounting set with a compact black bracket, designed for attaching accessories or bags to a bicycle handlebar.

Mounting

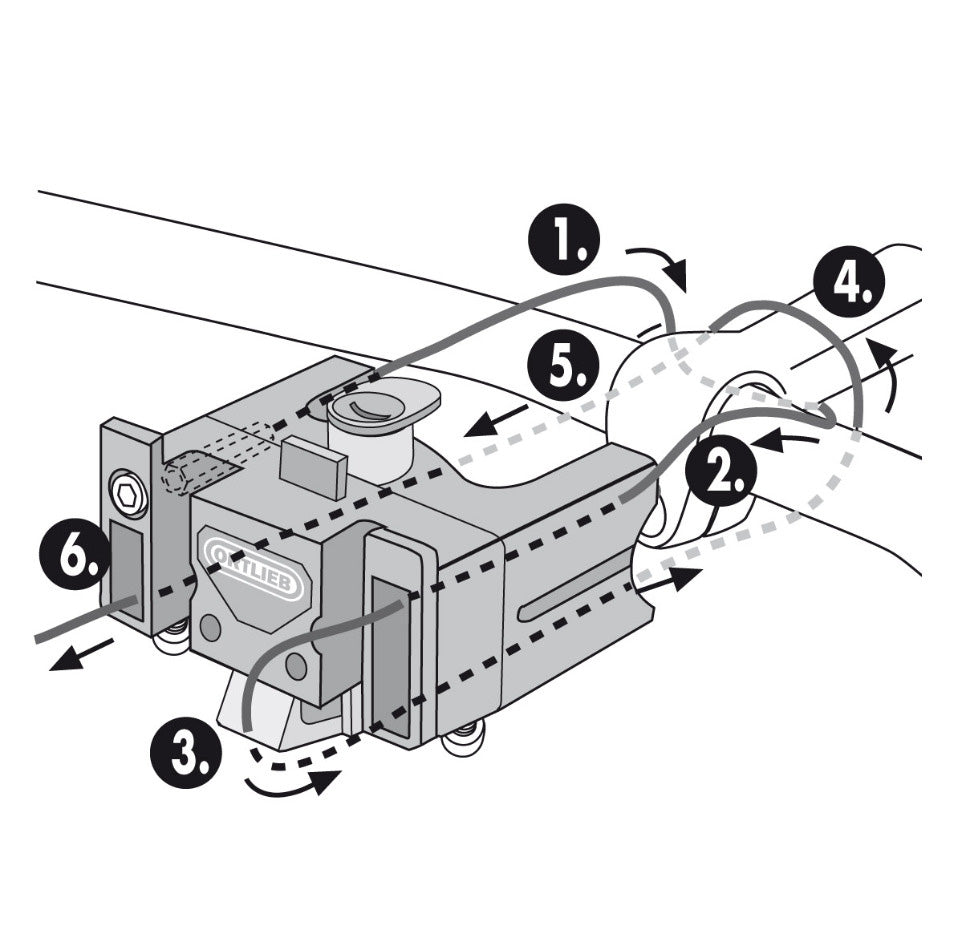

See drawing below how to mount the steel cable of the Ultimate Mounting System around the handle bar and stem:

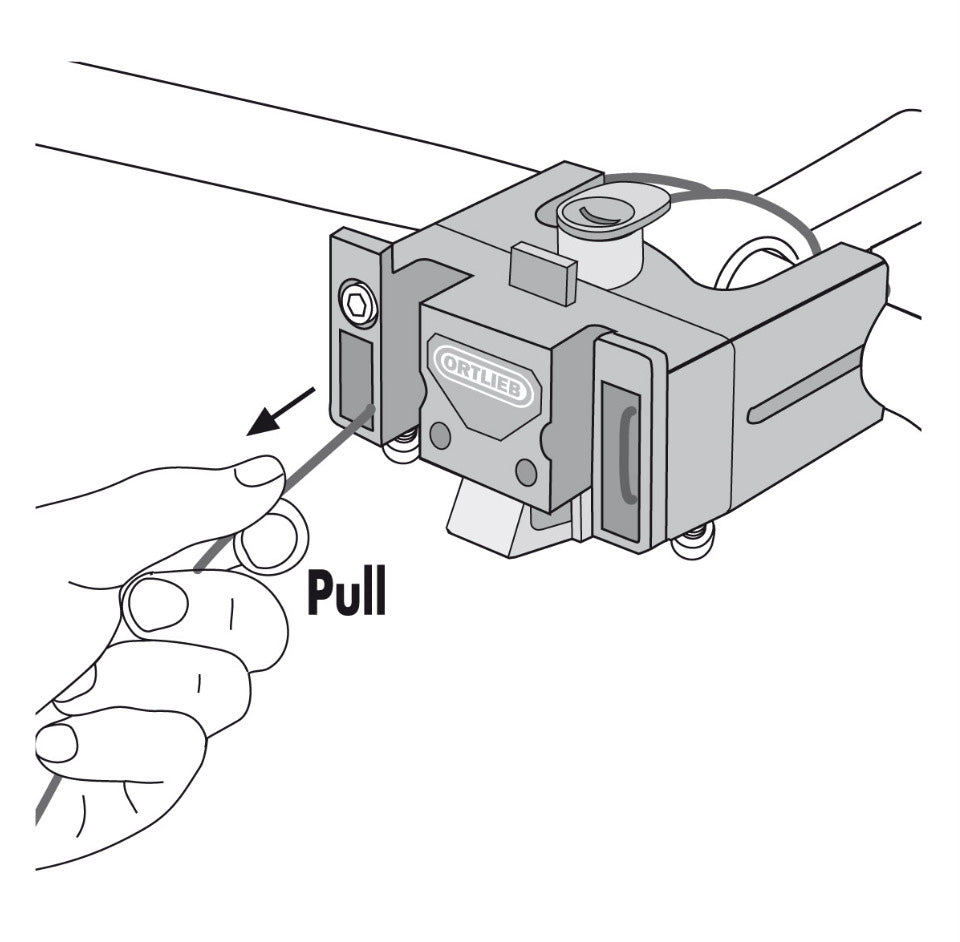

Illustration showing step-by-step instructions for installing an ORTLIEB handlebar mounting system, with numbered steps guiding the attachment process. Illustration showing a hand pulling a strap to secure an ORTLIEB handlebar mounting system during the installation process.

Compatibility notice

If you want to know which version of the ORTLIEB handlebar bag fits on which version of the mounting set, please see our chart.

Chart

The UItimate mounting set must not be used on carbon handle bars.

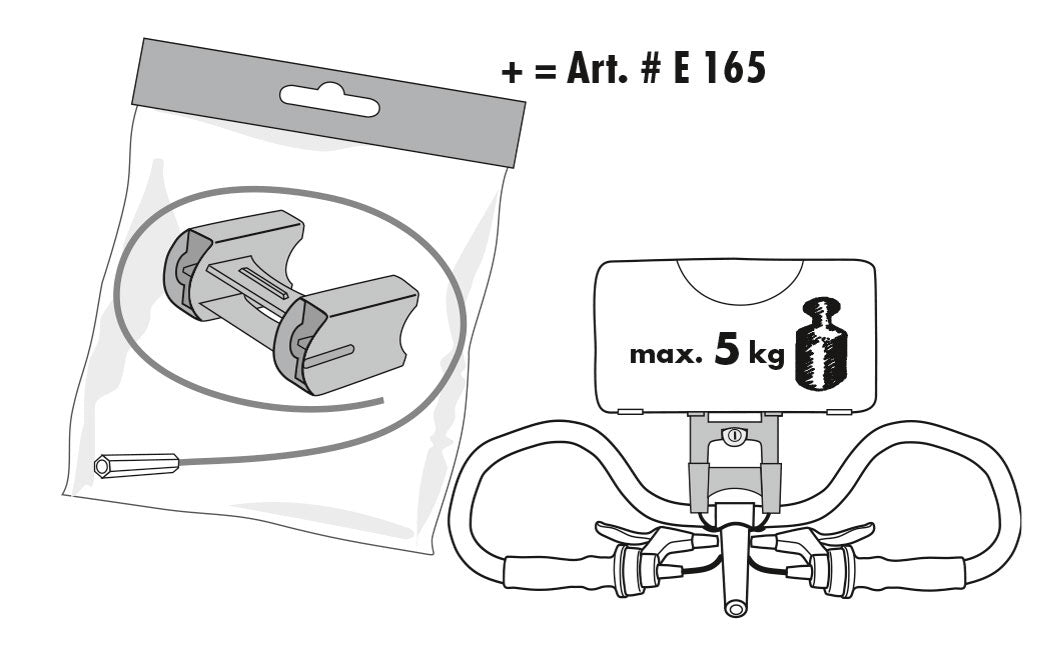

For strongly bent comfort handle bars (e.g. Modolo or Humpert) we recommend the mounting set extension (article code E165). The steel cable is 25 cm (10 in.) longer than the regular version.

Here you find a drawing of how to mount the Mounting Set for Extension of Ultimate fixing-system around the handle bar and stem:

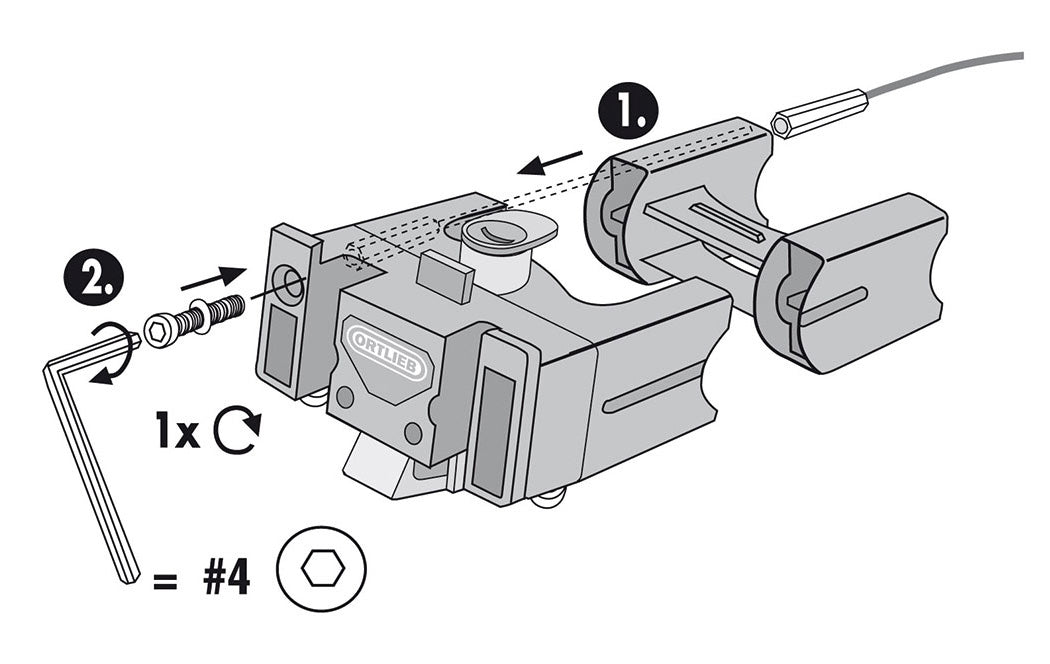

Illustration showing an ORTLIEB handlebar mounting adapter kit with a recommended maximum load of 5 kg for handlebar bags Illustration showing the assembly process of an ORTLIEB handlebar mounting adapter, with steps two for tightening screws using a hex key.

Bar-Lock

Our Bar-Lock mounting set is universal for mounting to all conventional handles. How to attach the mounting set to the handlebar, please watch the video.

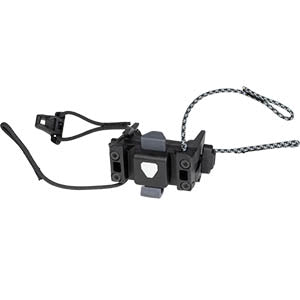

ORTLIEB handlebar mounting system bar-lock with adjustable straps and designed for quick attachment of handlebar-bags

Mounting

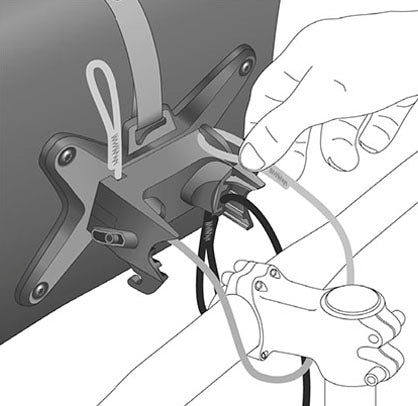

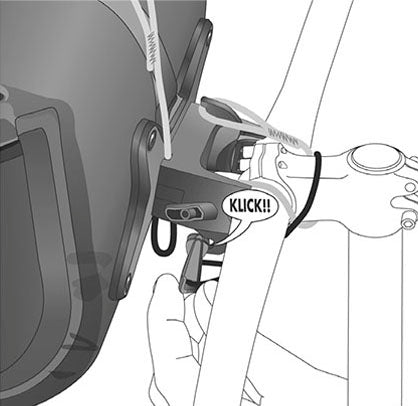

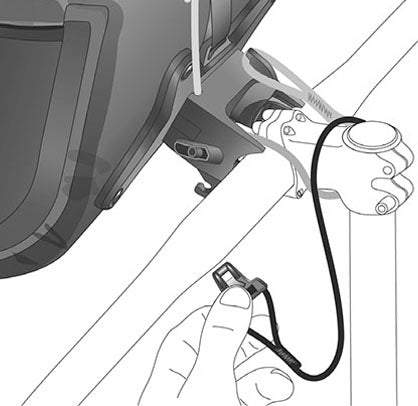

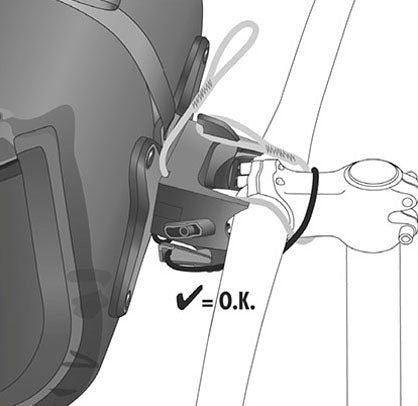

Illustration showing a hand securing an ORTLIEB handlebar bag using a locking cable attachment to ensure stability on the bike’s stem Illustration showing a hand attaching a safety cable to an ORTLIEB handlebar bag, securing it to the bike’s stem for additional stability. Illustration showing a hand clicking the ORTLIEB handlebar bag securely into place on the bike’s handlebar mount with an audible 'Klick' sound. Illustration confirming the ORTLIEB handlebar bag is properly mounted and secured to the bike with a checkmark and 'OK' indicator.

Compatibility notice

If you want to know which version of the ORTLIEB handlebar bag fits on which version of the mounting set, please see our chart.

Chart
