Back-Roller XL Plus

Pair of bags

The Back-Roller XL Plus is the largest version of the Back-Roller Plus touring bag. It offers 70 litres of storage space per pair, which is almost double the capacity.

Color: granite

Pair of ORTLIEB Back-Roller XL Plus QL2.2 bicycle bags in granite - black with Quick-Lock system

Pair of ORTLIEB Back-Roller XL Plus QL2.2 bicycle bags in dark chili with Quick-Lock system

Mounting system

QL2.1 QL2.2

SKU: F5255

In stock – Shipping Time: 1-3 business days

5 year

5-Year Warranty

ORTLIEB-Warranty

ORTLIEB offers a 5-year limited non-transferable warranty on all new products purchased through an authorized ORTLIEB retailer against manufacture defect.
ORTLIEB also offers a 1-year limited non-transferable warranty on all repairs performed by ORTLIEB USA.

Bags acquired second-hand, or via unauthorized 3rd Party retailers (such as eBay or Amazon) are not eligible for warranty coverage through ORTLIEB USA.

ORTLIEB USA accepts no liability for any claims relating to normal wear and tear, improper product use, failure to follow assembly or mounting instructions, product modifications, or improper storage. The warranty does not cover material abrasion, holes, tears, cuts, or other damages that occur as a result of an external variable or event (i.e. bicycle accident).

ORTLIEB USA does not assume responsibility for the cost of shipping an item to ORTLIEB USA for assessment, repair, or replacement. That cost is the responsibility of the user.
Please contact our Product Service team to submit a warranty inquiry or request a repair. If your product is replaced pursuant to the terms of the warranty, the date of the original purchase shall still apply as the reference date for the 5-year warranty period.

Authorized Retailers: Please contact our Product Service Team prior to processing a warranty claim for an end user to verify that the claim is valid and will be supported by ORTLIEB USA. We reserve the right to deny claims which do not follow our policy.

at checkout

$350

Tax excluded.

Back-Roller XL Plus

$350

The Back-Roller XL Plus allows you to carry large items of luggage for long tours or everyday commuting. The XL version of the Back-Roller Plus has a total volume of 70 litres per pair of bags. The bag is made of robust, PVC-free Cordura fabric. The waterproof roll closure reliably protects the contents from moisture and dirt. It can be quickly and precisely mounted on the luggage rack using the Quick-Lock system.

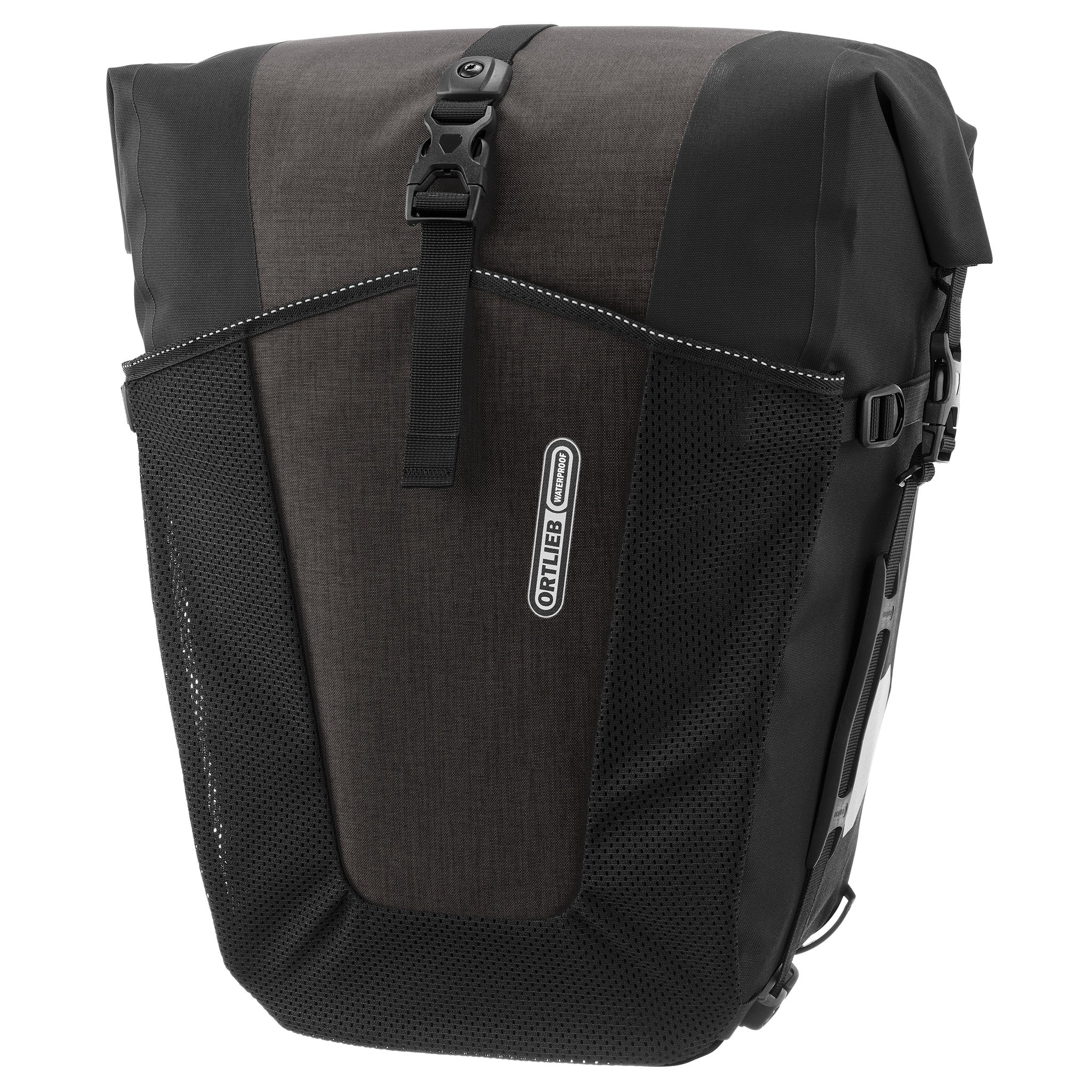

An outer pocket with a volume of four litres per side, which is not waterproof, complements the storage space for items that are needed quickly.
The bags are repairable and manufactured in our factory in Heilsbronn. Waterproofing is standard at ORTLIEB.

Specifications

Per bag

Height

17.7 in

Width

14.2 in

Depth

10.2 in

Volume

35 L

Load

27.6 lb

Weight

35.5 oz

SKU

F5255

Waterproof

Yes ()

IP Ratings

The IP rating is an international standard that indicates how well a product is protected against dust and water.

The Back-Roller XL Plus meets the IP64 protection rating:

Even in very heavy rain and splashing water, the contents stay perfectly dry. The Back-Roller XL Plus is therefore ideal for longer outdoor adventures in stormy conditions.

All protection ratings at a glance

IP67

The product is dust-tight and protected against temporary immersion (up to 1 m for 30 min.).

IP64

The product is dust-tight and protected against splashing water from all directions.

IP54

The product is dust-protected and protected against splashing water from all directions.

IP53

The product is dust-protected and protected against spraying water up to 60° from vertical.

Material

PU-coated Cordura (PS36C)

Mounting System

Quick-Lock2.2

Downloads

Instruction
Datasheet

Scope of delivery

2x pannier with QL2.2 mounting system
2x shoulder strap

Spare parts

Shoulder strap (85 cm)

Repair kit Stealth side-release buckle

Bike-rack abrasion guards

Repair kit for Stealth- side-release buckles

QL2.1 Mounting Hooks

Semi-elliptical bracket for lower QL2.1 anchoring hook

Screw set

Stealth auxiliary closure strap QL2.1, black

X-Stealth side-release buckle

Long QL2.1-rail with screws, without hooks

X-Stealth 25 mm (auxiliary closure strap)

Edge protection QL2.1

QL2.2 Hooks

QL1/ 2/ 2.1/ 2.2 Anchoring Hook

Warnings and safety information

Risk of injury due to incorrectly attached products! Before riding, check that the product is securely fastened.
Risk of injury due to loose risers! Pull the carrying straps tight before each journey or stow them safely.
Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 100 km, 500 km, 1000 km and 1500 km and retighten them if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 9 kg. If necessary, weigh your load to ensure that you do not exceed the maximum payload.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Our mounting systems compared

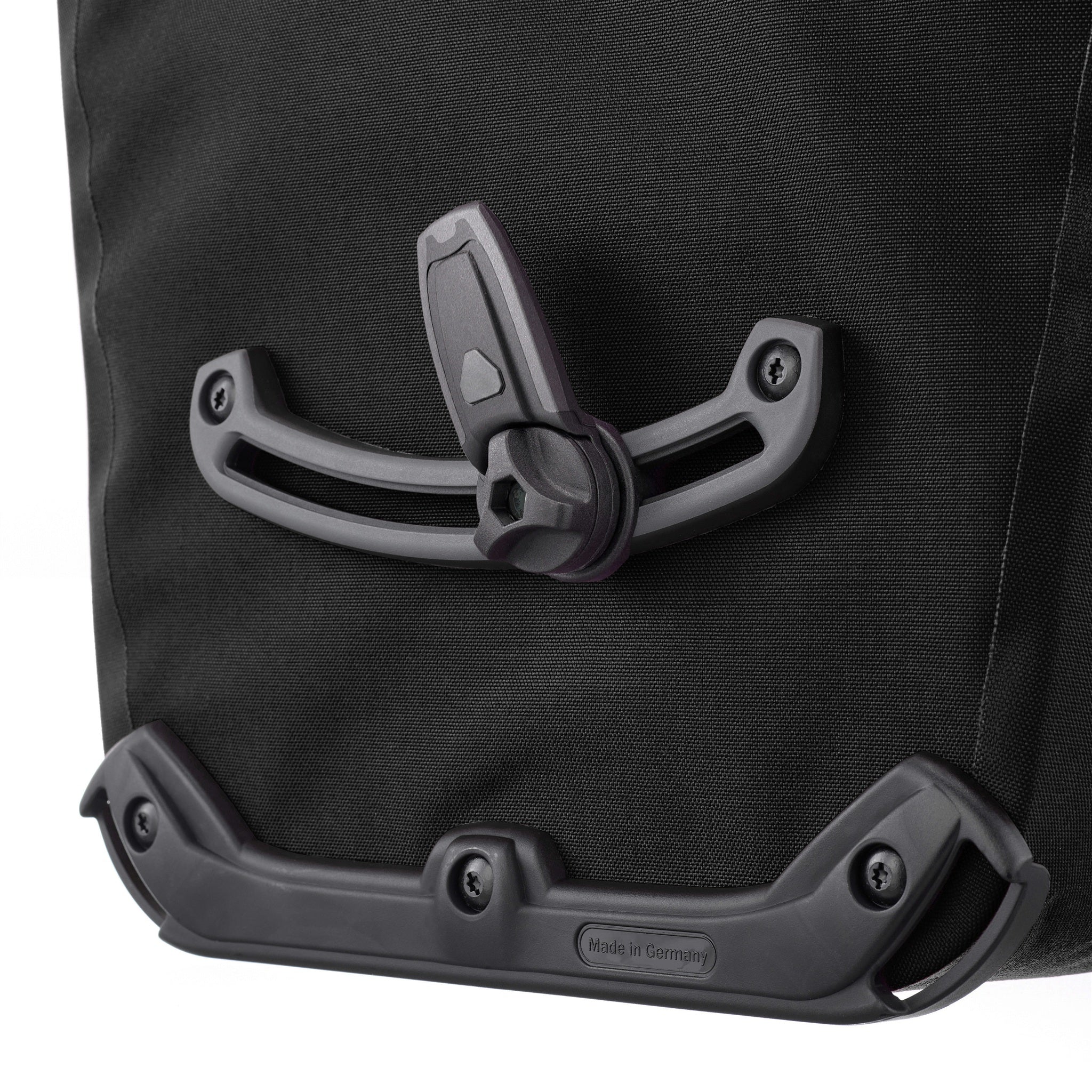

The QL mounting systems on ORTLIEB panniers allow fast and secure mounting on racks. They are referred to as self-locking fixing systems, for the panniers provided with this system can be mounted to the racks in an easy and safe manner. In case of damage all components can be replaced easily.

To the detailed overview of the mounting systems

Current variant Current variantQuick-Lock2.2

Quick-Lock2.1

Quick-Lock3.1

The evolution of the QL2.1 system, with higher payload and quick switching between different bikes.

ORTLIEB’s most proven mounting system, trusted by millions of satisfied cyclists.

The QL3.1 system secures the bag to the rack particularly quickly and easily and offers excellent carrying comfort away from the bike.

Feature

Quick, tool-free adjustment without reducer inserts

Tool-free adjustment

Back of bag is free of protruding hooks

Maximum load

12.5 kg

9 kg

Compatible racks

Compatible with all conventional luggage racks

For racks with QL3.1-compatible mounting points. Can also be retrofitted with the QL3.1 Mounting Set.

Compatible tube diameters

8–20 mm

8–16 mm (with QL3.1 Mounting Set)

The hooks can be adjusted tool-free between 10 and 16 mm in 1 mm increments. With the QL2.1 hooks, 18 or 20 mm tubes can also be used.

The 16 mm hooks can be adjusted to 8, 10 and 12 mm using the included reducer inserts. With the QL2.1 hooks and anchoring hooks, 18 or 20 mm tubes can also be used.

The QL3.1 Mounting Set can be attached to racks with a tube diameter of up to 16 mm. For tube diameters from 11 to 16 mm, the adapter clamps are also required.

More features

Lockable

with the QL2-Lock or the anti-theft device

(not included)

with the QL2-Lock or the anti-theft device

(not included)

—

One-handed operation possible

Mounting components

On the bag

On the rack

Anti-scratch coating

On upper hooks, lower hook & lower hook rail

On inserts (upper hooks) & lower hook rail

Not required

All individual parts available as spare parts

View all Quick-Lock2.2 products

View all Quick-Lock2.1 products

View all Quick-Lock3.1 products

Compare similar products

Compare all bike bags

QL2.2

Extra spacious panniers made from Cordura with additional front pocket

The absolute classic among panniers: robust and waterproof

Robust, waterproof bike bags with lid closure

305 – $350

$220

235 – $260

Single/Pair Bag

Pair of bags

Volume

35 L

20 L

Mounting System

Quick-Lock2.1
Quick-Lock2.2

Quick-Lock2.1

Quick-Lock2.1

Weight

35.5 oz
per bag

33.5 oz
per bag

36.7 oz
per bag

Material

Plus

Classic

Weather protection & closure

Closure

Roll-top closure

Flap closure

Waterproof

100 % Waterproof

IP Rating

IP64
The product is dust-tight and protected against splashing water from all directions.

IP54
The product is dust-protected and protected against splashing water from all directions.

Mounting and carrying options

2-in-1 Bag

Mounted on

Rear rack

Rear rack

Rear rack

Carry Options

Handle
Detachable shoulder strap

Handle
Detachable shoulder strap

Handle
Detachable shoulder strap

Back Padding

—

Chest Strap

Waist Strap

Self-Standing

Storage & organization

Inner Pockets

Laptop Compartment

—

External Pockets

Mesh pocket

—

Clear Pocket

Features & adjustment

External Attachment Points

—

Compression Options

—

Hydration Tube Port

Reflective Elements

Dimensions

Height

17.7 in

16 – 16.5 in

16.5 in

Width

14.1 – 14.2 in

12 – 12.6 in

12.6 in

Depth

10.2 in

6 – 6.7 in

6.7 in

Diameter

—

Length

—

Max. Load

19.8 – 27.6 lb

19.8 – 20 lb

19.8 lb

View product page

Frequently Asked Questions

How do the different Back-Roller models differ?

All Back-Roller models are waterproof and extremely durable. The main differences are in the material, features, design, and volume. Many models are available individually or as a pair. The product image always shows the correct quantity, and a corresponding note can be found on the product page.

Models with the additions Plus, Plus CR, or Urban are made from a single-sided coated material. It is just as waterproof as the classic tarp material but looks more textile-like and elegant.
The Free models, like the Urban and Plus variants, are completely PVC-free while still retaining the typical feel of the tarp material.
For the Back-Roller Plus and Back-Roller Plus Urban, the “Plus” refers to the additional outer pocket. Both bags have a textile appearance.
The XL models offer 35 liters of storage space per bag and are particularly suitable for long tours or for anyone who likes to carry more luggage.
The Back-Roller Core is the entry-level model. It focuses on the essentials, is waterproof and robust, and does not include a shoulder strap or an inner pocket.

Most models feature the popular Quick-Lock2.1 mounting system. Some variants use alternative systems, which you can compare on our Quick-Lock overview page.

To Quick-Lock overview

What is the difference between Back-Roller and Sport-Roller?

Both models are waterproof, robust and equipped with the Quick-Lock system.
The Back-Roller is designed for the rear luggage rack and offers plenty of storage space with 20 liters per bag for longer tours or everyday use.
The Sport-Roller is more compact, holds 14.5 liters and is ideal as a front bag on a lowrider or for smaller bicycles.

How is the the Back-Roller XL Plus mounted on the luggage rack?

With ORTLIEB’s Quick-Lock mounting systems, you can easily attach the bag to the luggage rack with one hand. Removing it is just as easy. You’ll find the exact mechanism for each Quick-Lock system on our overview page.

To Quick-Lock overview

Is the Back-Roller XL Plus waterproof?

The Back-Roller XL Plus is waterproof according to protection class IP64. This rating indicates:

The product is dust-tight and protected against splashing water from all directions. Even in very heavy rain and splashing water, the contents stay perfectly dry. The Back-Roller XL Plus is therefore ideal for longer outdoor adventures in stormy conditions.

More about waterproofness

Does the Back-Roller XL Plus fit my luggage rack?

ORTLIEB bags with the Quick-Lock mounting system are compatible with almost all luggage racks. The Quick-Lock2.1 and Quick-Lock2.2 systems fit racks with tube diameters from 8 mm to 16 mm. Bags with Quick-Lock3.1 require special attachment points on the luggage rack, which can easily be retrofitted using a mounting kit if necessary.

To the QL3.1 mounting kit

Where is the Back-Roller XL Plus manufactured?

The Back-Roller XL Plus is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

Is the Back-Roller XL Plus worth the price?

ORTLIEB products stand for durability and repairability. The Back-Roller XL Plus is manufactured in our factory in Heilsbronn, Germany. We source materials locally, regionally, or internationally depending on what meets our high standards. We invest time in development to ensure the functionality of every detail.

Thanks to long-lasting materials, the bag is a reliable companion. Its lifespan puts the purchase price into perspective, especially since we offer a five-year warranty on our products. A wide range of repair and upgrade options further improves the price-performance ratio.

Repair before replacement: Every product is designed to be easy to repair and can, in most cases, be serviced by our Customer Service team in Heilsbronn. This extends its lifespan and conserves resources.
