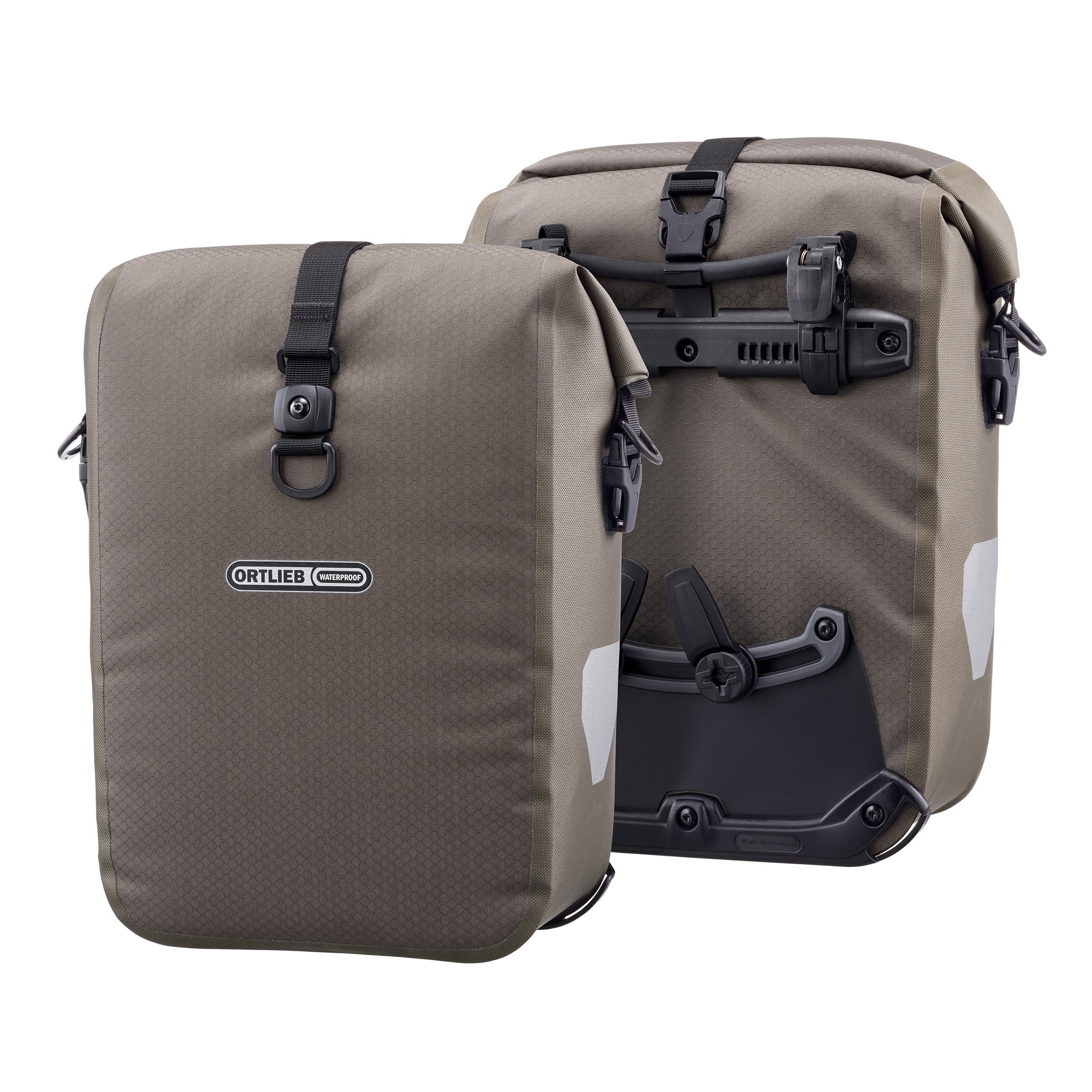

Gravel-Pack

Pair of bags

Ideal for multiday tours and self-supported races, the ORTLIEB Gravel-Pack duo offers you a combined payload of 29 liters for additional gear such as mess kits, food and other “luxury” items. Mounting the Pack to your lowrider bike rack allows you to maintain a low center of gravity and undiminished off-road agility despite your extra gear.

Color: dark sand

Mounting system

QL2.1 QL2.2

SKU: F9997

In stock – Shipping Time: 1-3 business days

5 year

5-Year Warranty

ORTLIEB-Warranty

ORTLIEB offers a 5-year limited non-transferable warranty on all new products purchased through an authorized ORTLIEB retailer against manufacture defect.
ORTLIEB also offers a 1-year limited non-transferable warranty on all repairs performed by ORTLIEB USA.

Bags acquired second-hand, or via unauthorized 3rd Party retailers (such as eBay or Amazon) are not eligible for warranty coverage through ORTLIEB USA.

ORTLIEB USA accepts no liability for any claims relating to normal wear and tear, improper product use, failure to follow assembly or mounting instructions, product modifications, or improper storage. The warranty does not cover material abrasion, holes, tears, cuts, or other damages that occur as a result of an external variable or event (i.e. bicycle accident).

ORTLIEB USA does not assume responsibility for the cost of shipping an item to ORTLIEB USA for assessment, repair, or replacement. That cost is the responsibility of the user.
Please contact our Product Service team to submit a warranty inquiry or request a repair. If your product is replaced pursuant to the terms of the warranty, the date of the original purchase shall still apply as the reference date for the 5-year warranty period.

Authorized Retailers: Please contact our Product Service Team prior to processing a warranty claim for an end user to verify that the claim is valid and will be supported by ORTLIEB USA. We reserve the right to deny claims which do not follow our policy.

at checkout

$215

Tax excluded.

Gravel-Pack

$215

Ideal for multiday tours and self-supported races, the ORTLIEB Gravel-Pack duo offers you a combined payload of 29 liters for additional gear such as mess kits, food and other “luxury” items. Mounting the Pack to your lowrider bike rack allows you to maintain a low center of gravity and undiminished off-road agility despite your extra gear. While the Pack’s streamlined design –without inside pockets and a shoulder-strap pad –helps to keep it in the featherweight class, its lightweight, wear-resistant material withstands even the harshest of rock and gravel conditions you encounter on your way. And no matter how wet the weather, your things will stay dry thanks to the proven ORTLIEB-waterproof quality and roll closure. With the Quick-Lock-mounting-system, the Gravel-Pack remains tightly attached to your bike rack while you ride over hill and dale on your gravel grinder, mountain bike or fatbike.

Specifications

Per bag

Height

14.6 in

Width

10.2 in

Depth

4.7 in

Volume

14.5 L

Load

27.6 lb

Weight

22.6 oz

SKU

F9997

Waterproof

Yes ()

IP Ratings

The IP rating is an international standard that indicates how well a product is protected against dust and water.

The Gravel-Pack meets the IP64 protection rating:

Even in very heavy rain and splashing water, the contents stay perfectly dry. The Gravel-Pack is therefore ideal for longer outdoor adventures in stormy conditions.

All protection ratings at a glance

IP67

The product is dust-tight and protected against temporary immersion (up to 1 m for 30 min.).

IP64

The product is dust-tight and protected against splashing water from all directions.

IP54

The product is dust-protected and protected against splashing water from all directions.

IP53

The product is dust-protected and protected against spraying water up to 60° from vertical.

Material

PU-coated Nylon (PS21R, PS33)

Mounting System

Quick-Lock2.2

Downloads

Instruction
Datasheet

Scope of delivery

2x pannier with QL2.2 mounting system

Spare parts

Carrying strap with carabiners (145 cm)

Repair kit for Stealth- side-release buckles

QL2.1 Mounting Hooks

Semi-elliptical bracket for lower QL2.1 anchoring hook

Screw set

Stealth auxiliary closure strap QL2.1, black

Long QL2.1-rail with screws, without hooks

Short QL2.1-rail with screws, without hooks

X-Stealth 25 mm (auxiliary closure strap)

Edge protection QL2.1

QL2.2 Hooks

QL1/ 2/ 2.1/ 2.2 Anchoring Hook

Warnings and safety information

Risk of injury due to incorrectly attached products! Before riding, check that the product is securely fastened.
Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 100 km, 500 km, 1000 km and 1500 km and retighten them if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 9 kg. If necessary, weigh your load to ensure that you do not exceed the maximum payload.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Our mounting systems compared

The QL mounting systems on ORTLIEB panniers allow fast and secure mounting on racks. They are referred to as self-locking fixing systems, for the panniers provided with this system can be mounted to the racks in an easy and safe manner. In case of damage all components can be replaced easily.

To the detailed overview of the mounting systems

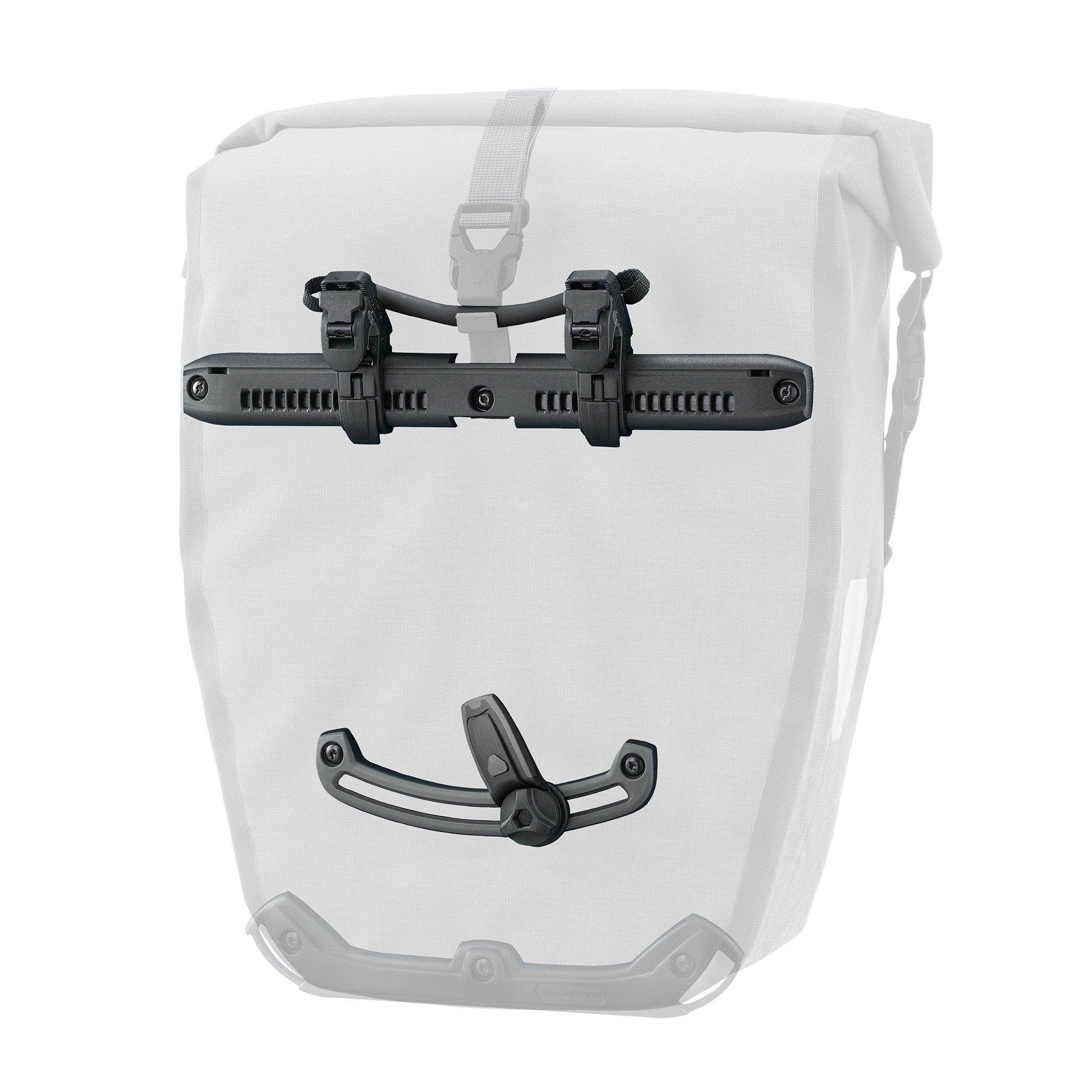

Current variant Current variantQuick-Lock2.2

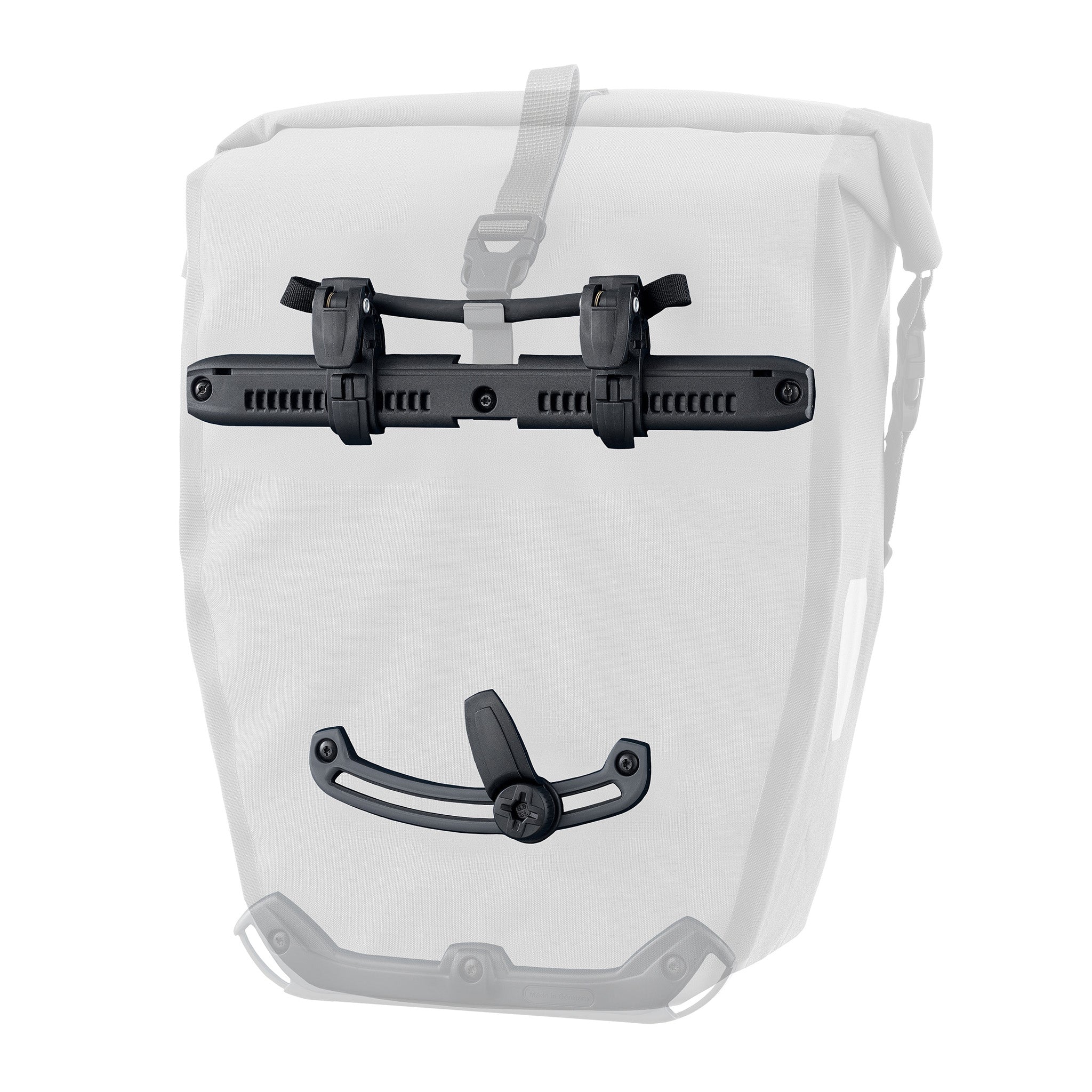

Quick-Lock2.1

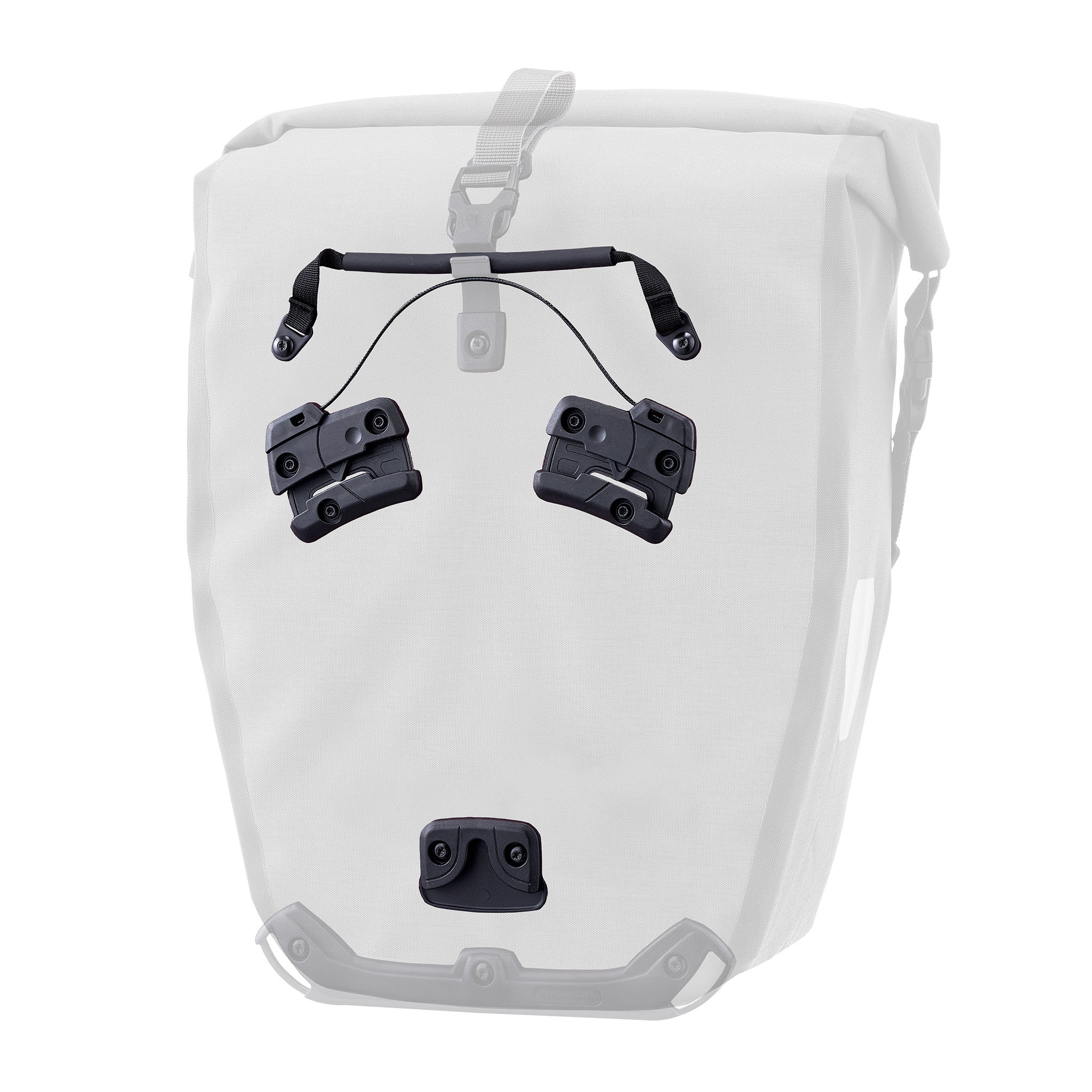

Quick-Lock3.1

The evolution of the QL2.1 system, with higher payload and quick switching between different bikes.

ORTLIEB’s most proven mounting system, trusted by millions of satisfied cyclists.

The QL3.1 system secures the bag to the rack particularly quickly and easily and offers excellent carrying comfort away from the bike.

Feature

Quick, tool-free adjustment without reducer inserts

Tool-free adjustment

Back of bag is free of protruding hooks

Maximum load

12.5 kg

9 kg

Compatible racks

Compatible with all conventional luggage racks

For racks with QL3.1-compatible mounting points. Can also be retrofitted with the QL3.1 Mounting Set.

Compatible tube diameters

8–20 mm

8–16 mm (with QL3.1 Mounting Set)

The hooks can be adjusted tool-free between 10 and 16 mm in 1 mm increments. With the QL2.1 hooks, 18 or 20 mm tubes can also be used.

The 16 mm hooks can be adjusted to 8, 10 and 12 mm using the included reducer inserts. With the QL2.1 hooks and anchoring hooks, 18 or 20 mm tubes can also be used.

The QL3.1 Mounting Set can be attached to racks with a tube diameter of up to 16 mm. For tube diameters from 11 to 16 mm, the adapter clamps are also required.

More features

Lockable

with the QL2-Lock or the anti-theft device

(not included)

with the QL2-Lock or the anti-theft device

(not included)

—

One-handed operation possible

Mounting components

On the bag

On the rack

Anti-scratch coating

On upper hooks, lower hook & lower hook rail

On inserts (upper hooks) & lower hook rail

Not required

All individual parts available as spare parts

View all Quick-Lock2.2 products

View all Quick-Lock2.1 products

View all Quick-Lock3.1 products

Compare similar products

Compare all bikepacking bags

QL2.2

Small, ultra-light bike bag, also suitable for front racks

Small pannier, ideal for lowrider racks or short tours

The absolute classic among panniers: robust and waterproof

195 – $215

$200

$220

Single/Pair Bag

Pair of bags

Volume

14.5 L

12.5 L, 14.5 L

20 L

Mounting System

Quick-Lock2.1
Quick-Lock2.2

Quick-Lock2.1

Quick-Lock2.1

Weight

20.5 – 22.6 oz
per bag

28.0 oz
per bag

33.5 oz
per bag

Material

—

Weather protection & closure

Closure

Roll-top closure

Waterproof

100 % Waterproof

IP Rating

IP64
The product is dust-tight and protected against splashing water from all directions.

Mounting and carrying options

2-in-1 Bag

Mounted on

Rear rack
Front rack

Rear rack
Front rack

Rear rack

Carry Options

Handle

Handle
Detachable shoulder strap

Handle
Detachable shoulder strap

Back Padding

—

Chest Strap

Waist Strap

Self-Standing

Storage & organization

Inner Pockets

Laptop Compartment

—

External Pockets

—

Clear Pocket

Features & adjustment

External Attachment Points

—

Compression Options

—

Hydration Tube Port

Reflective Elements

Dimensions

Height

14.6 in

11.8 – 14.6 in

16 – 16.5 in

Width

10.2 in

9.8 – 10.2 in

12 – 12.6 in

Depth

4.7 in

4.7 – 5.5 in

6 – 6.7 in

Diameter

—

Length

—

Max. Load

19.8 – 27.6 lb

19.8 – 20 lb

View product page

Frequently Asked Questions

How is the the Gravel-Pack mounted on the luggage rack?

With ORTLIEB’s Quick-Lock mounting systems, you can easily attach the bag to the luggage rack with one hand. Removing it is just as easy. You’ll find the exact mechanism for each Quick-Lock system on our overview page.

To Quick-Lock overview

Does the Gravel-Pack fit my luggage rack?

ORTLIEB bags with the Quick-Lock mounting system are compatible with almost all luggage racks. The Quick-Lock2.1 and Quick-Lock2.2 systems fit racks with tube diameters from 8 mm to 16 mm. Bags with Quick-Lock3.1 require special attachment points on the luggage rack, which can easily be retrofitted using a mounting kit if necessary.

To the QL3.1 mounting kit

How does the ORTLIEB Gravel-Pack differ from other ORTLIEB bike bags such as the Sport-Roller or Back-Roller?

The ORTLIEB Gravel-Pack shares many characteristics with other ORTLIEB bike bags such as the Sport-Roller or Back-Roller. It is also waterproof to IP64, extremely robust, and equipped with the proven roll closure. The volume is 14.5 liters per bag, the same as the Sport-Roller.
The key difference lies in its intended use: the Gravel-Pack is specifically designed for bikepacking and off-road touring. It is made from particularly lightweight, abrasion-resistant nylon fabric, making it ideal when every gram counts. Additional comfort features such as outer pockets or organizers were deliberately omitted to save weight and maximize freedom of movement in rough terrain.

How securely does the Gravel-Pack sit on the bike during rides on rough terrain?

The Gravel-Pack stays securely on the bike even on demanding terrain. Thanks to the robust Quick-Lock mounting system, the bags lock reliably onto the rack and remain stable even under vibrations and potholes. The low center of gravity also ensures balanced weight distribution and stable handling.

Where is the Gravel-Pack manufactured?

The Gravel-Pack is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

Is the Gravel-Pack worth the price?

ORTLIEB products stand for durability and repairability. The Gravel-Pack is manufactured in our factory in Heilsbronn, Germany. We source materials locally, regionally, or internationally depending on what meets our high standards. We invest time in development to ensure the functionality of every detail.

Thanks to long-lasting materials, the bag is a reliable companion. Its lifespan puts the purchase price into perspective, especially since we offer a five-year warranty on our products. A wide range of repair and upgrade options further improves the price-performance ratio.

Repair before replacement: Every product is designed to be easy to repair and can, in most cases, be serviced by our Customer Service team in Heilsbronn. This extends its lifespan and conserves resources.
