Fuel-Pack

5 reviews

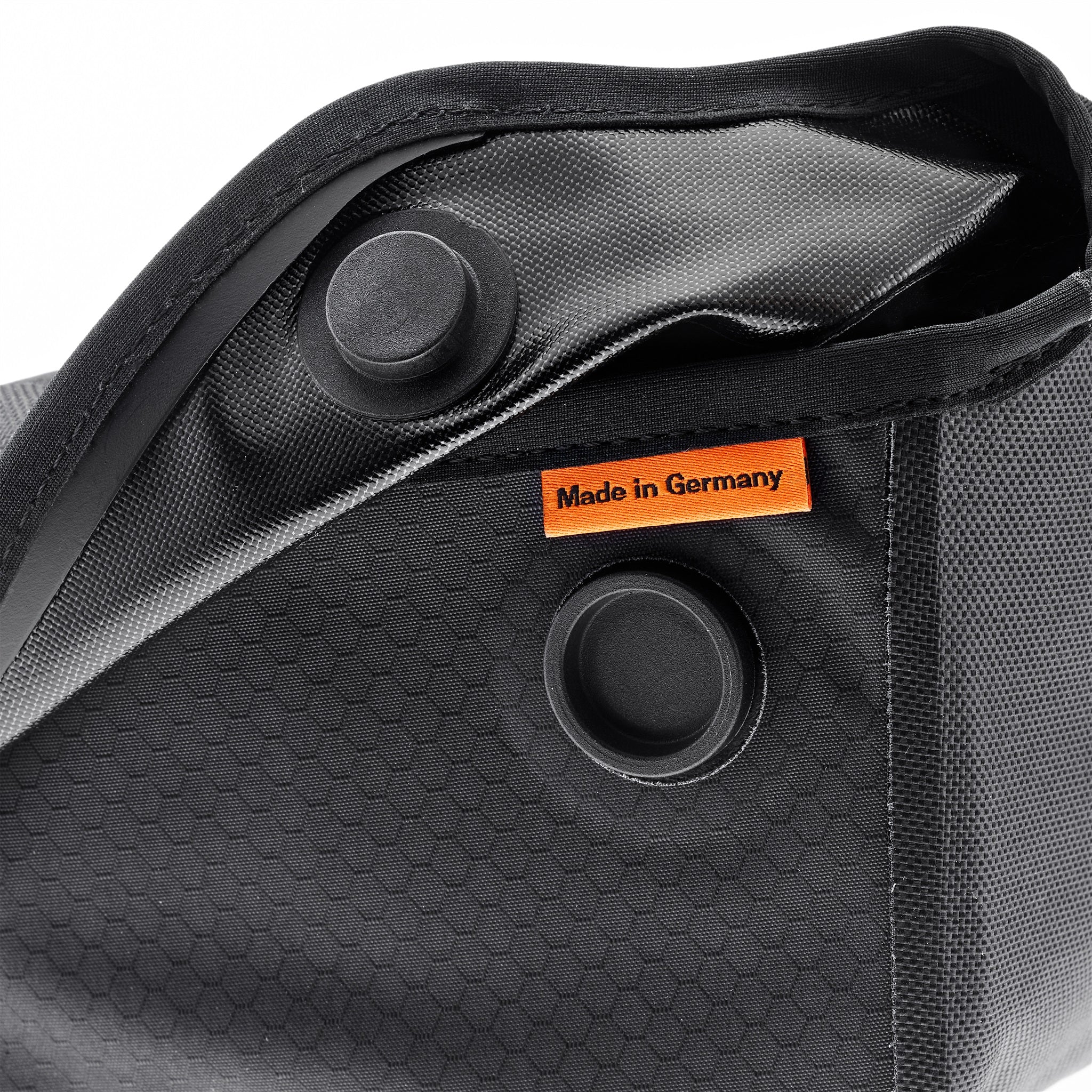

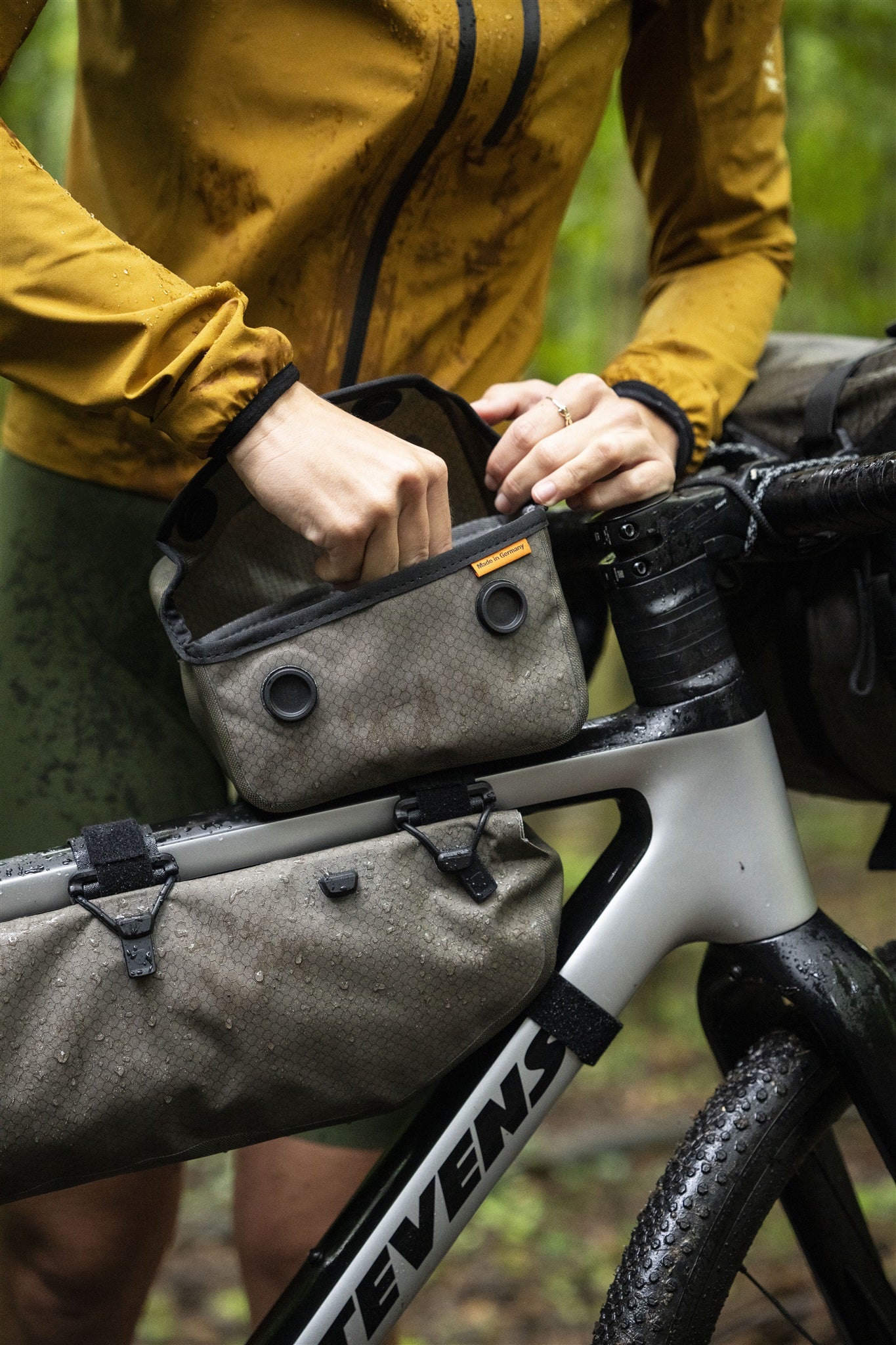

The practical magnetic lid closure on the Fuel Pack makes opening the top tube bag child’s play and allows you easy access to your energy supply during the ride.

Color: dark sand

SKU: F9967

In stock – Shipping Time: 1-3 business days

5 year

5-Year Warranty

ORTLIEB-Warranty

ORTLIEB offers a 5-year limited non-transferable warranty on all new products purchased through an authorized ORTLIEB retailer against manufacture defect.
ORTLIEB also offers a 1-year limited non-transferable warranty on all repairs performed by ORTLIEB USA.

Bags acquired second-hand, or via unauthorized 3rd Party retailers (such as eBay or Amazon) are not eligible for warranty coverage through ORTLIEB USA.

ORTLIEB USA accepts no liability for any claims relating to normal wear and tear, improper product use, failure to follow assembly or mounting instructions, product modifications, or improper storage. The warranty does not cover material abrasion, holes, tears, cuts, or other damages that occur as a result of an external variable or event (i.e. bicycle accident).

ORTLIEB USA does not assume responsibility for the cost of shipping an item to ORTLIEB USA for assessment, repair, or replacement. That cost is the responsibility of the user.
Please contact our Product Service team to submit a warranty inquiry or request a repair. If your product is replaced pursuant to the terms of the warranty, the date of the original purchase shall still apply as the reference date for the 5-year warranty period.

Authorized Retailers: Please contact our Product Service Team prior to processing a warranty claim for an end user to verify that the claim is valid and will be supported by ORTLIEB USA. We reserve the right to deny claims which do not follow our policy.

at checkout

$85

Tax excluded.

Fuel-Pack

$85

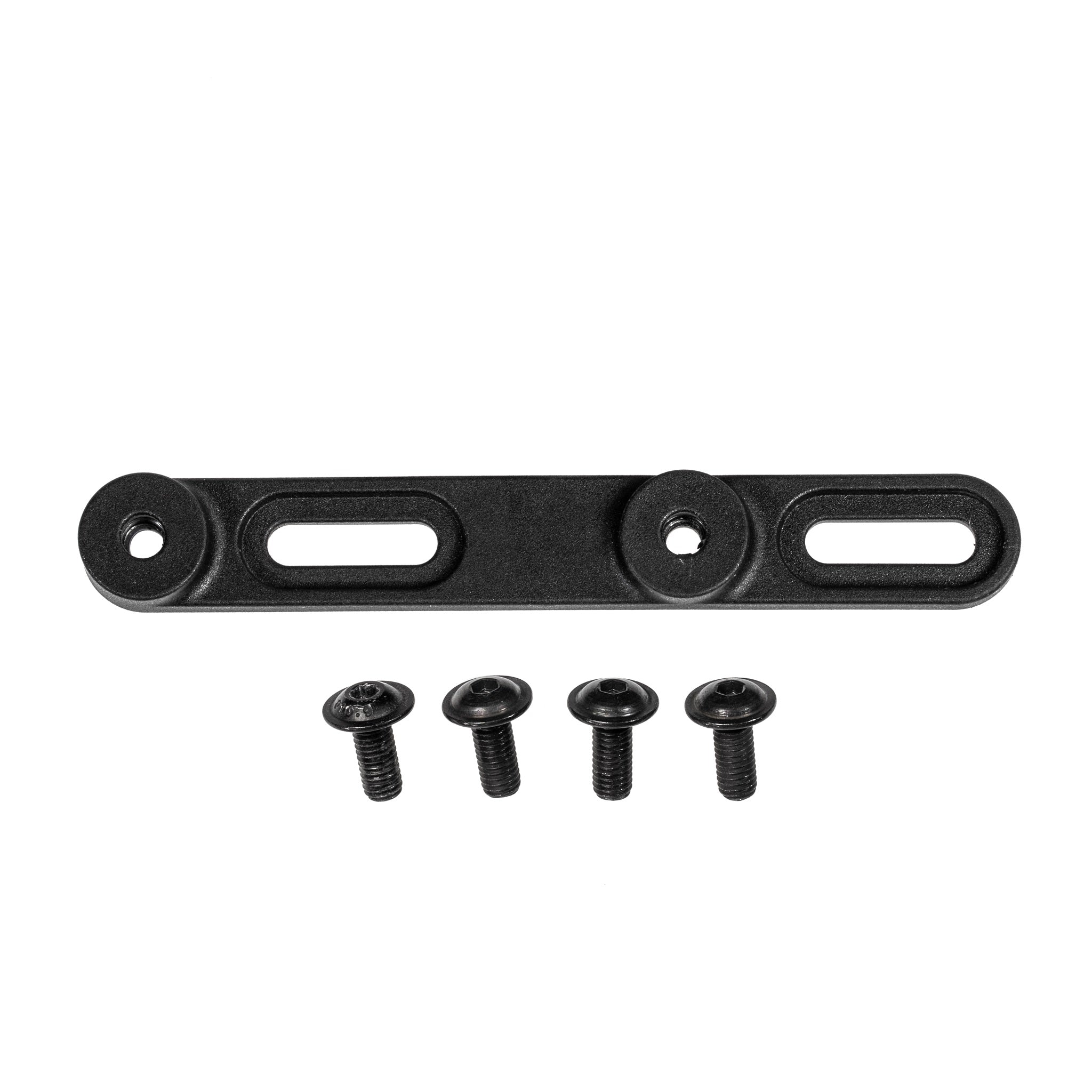

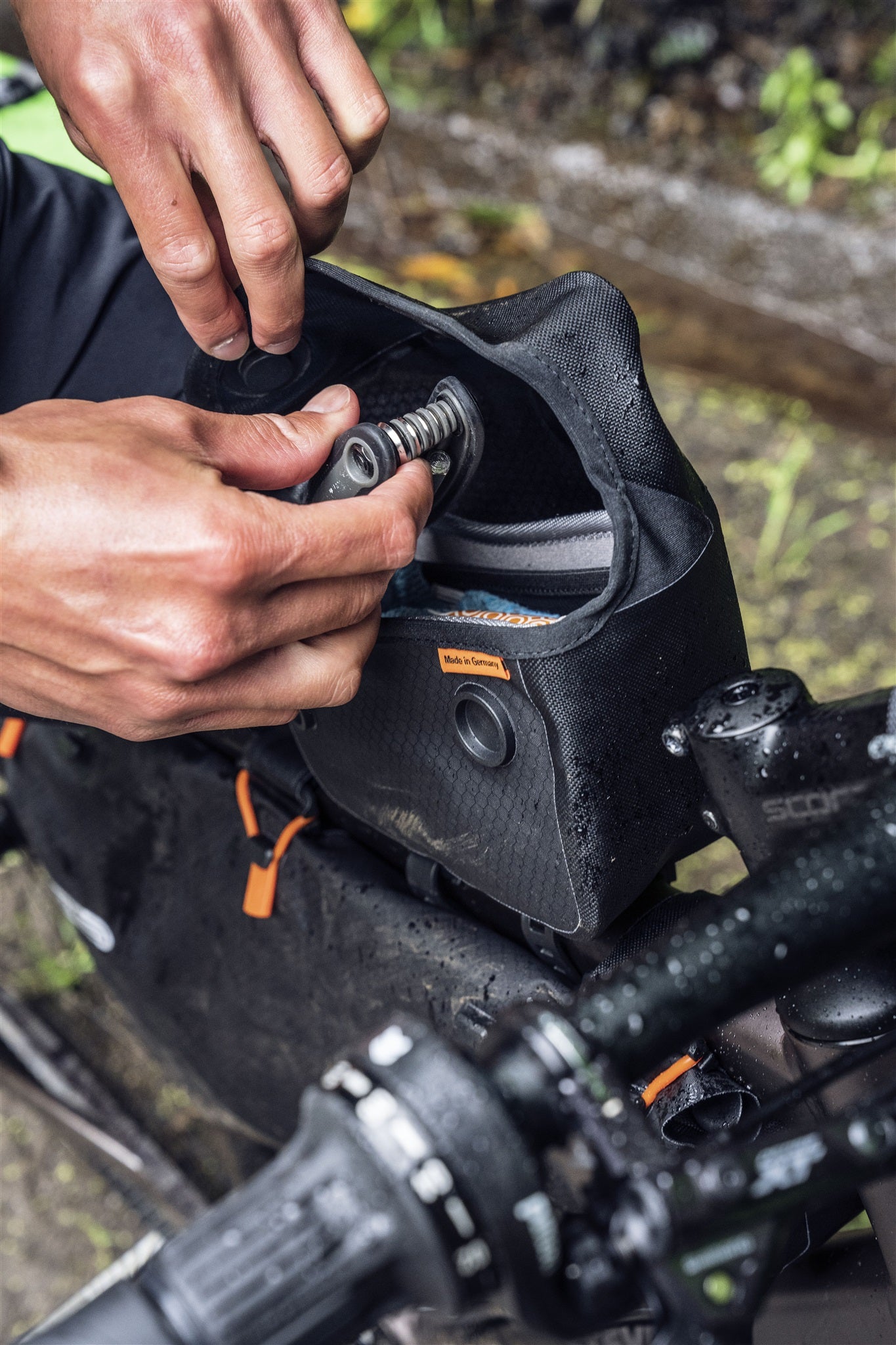

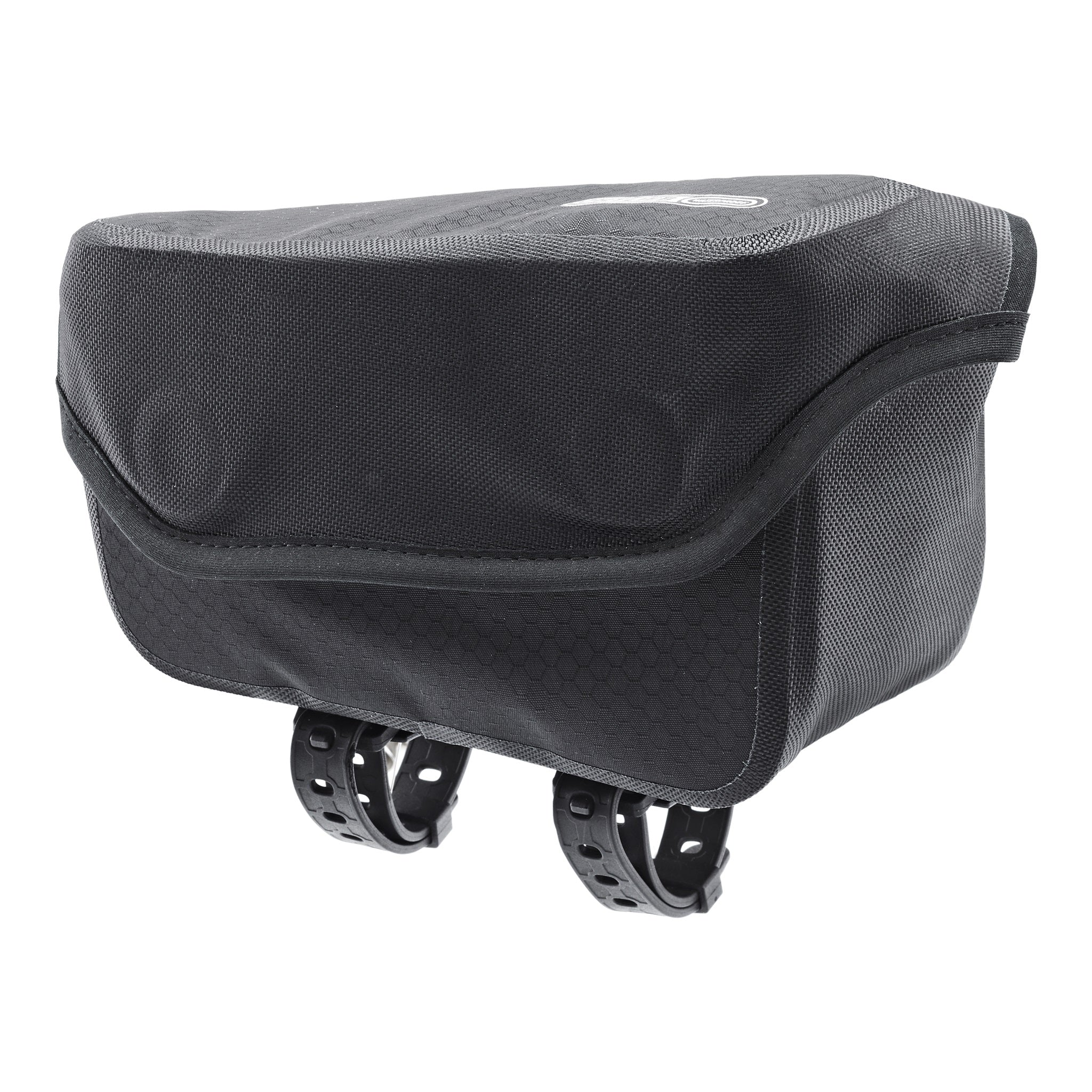

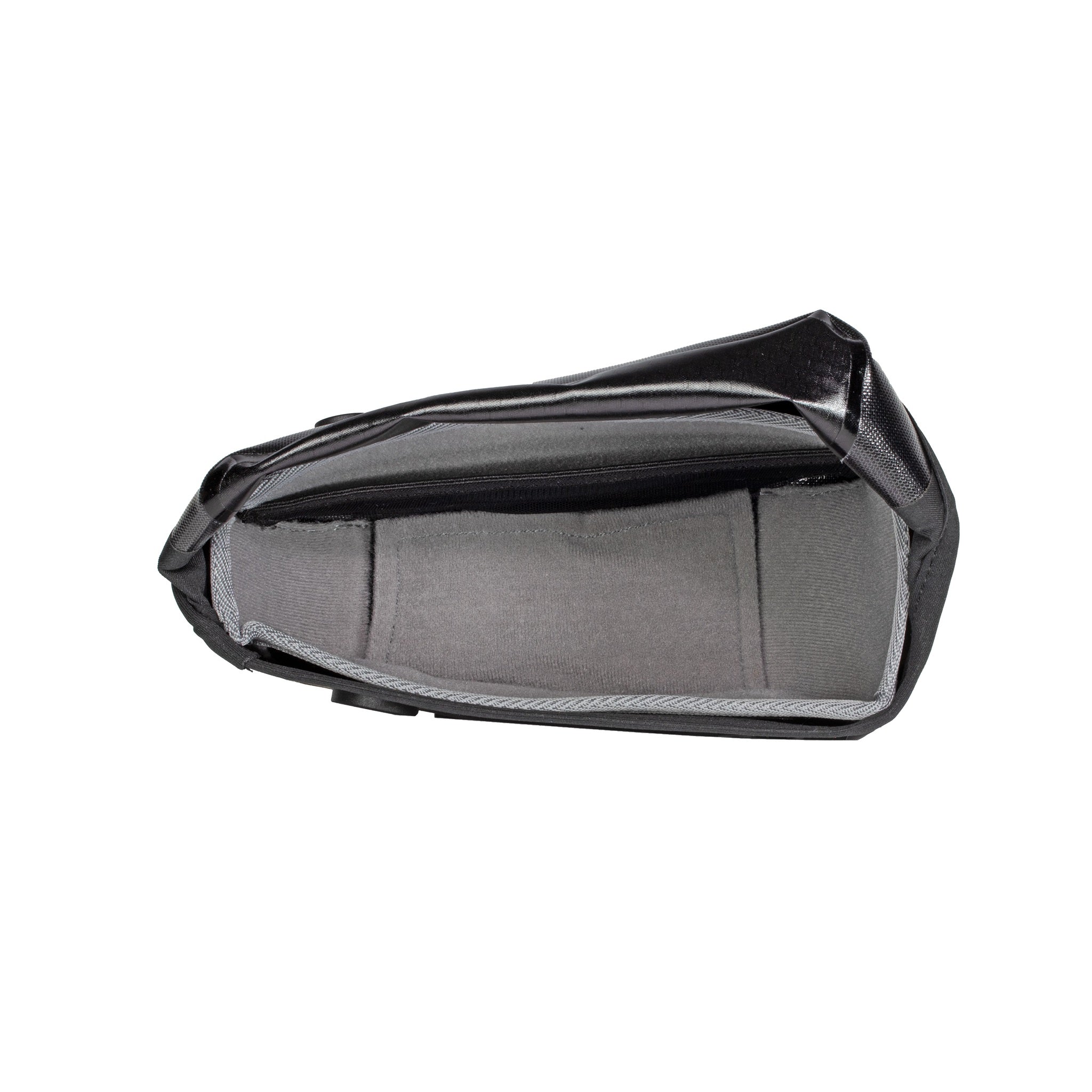

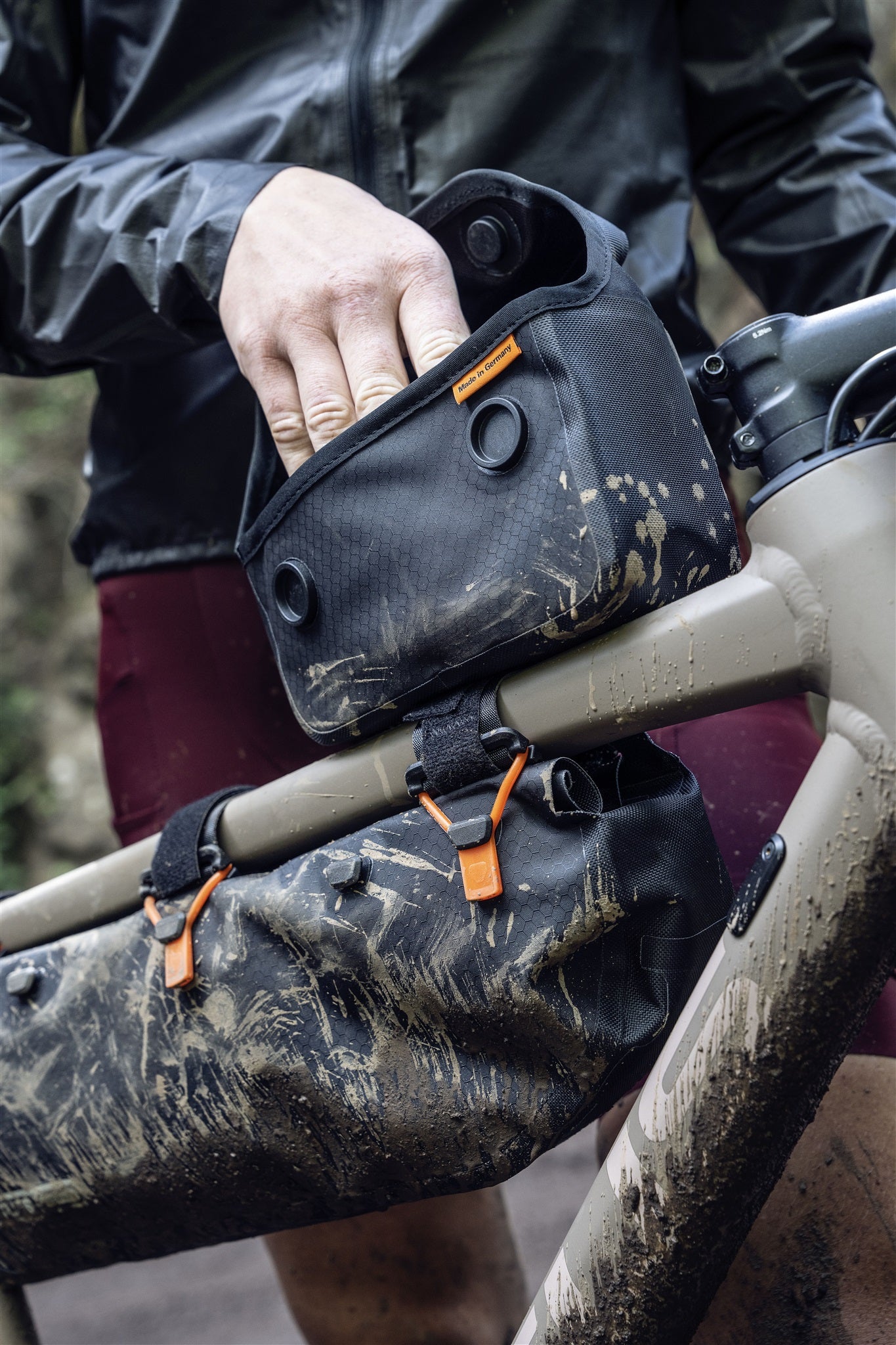

Keep your snacks, smartphone or other small equipment items within easy reach at all times during your ride. The practical magnetic lid closure makes child’s play of opening and closing the Fuel Pack with one hand. Inside, the PVC-free bag made of PU-coated nylon fabric features an outer mesh pocket which is easily accessible due to the reinforced bag material. The integrated cable outlet allows you to charge a device on the handlebars during the ride. Any threaded holes already present in the top tube can also be used to fasten the compact bag with screws. In the absence of threads, you can also attach your Fuel Pack flexibly using perforated rubber straps. If you don’t need the perforated straps to attach the Fuel Pack, you can use them for other purposes such as mounting an additional bottle holder on the down tube. If the threaded holes are not in the right place, the optionally available Offset-Plate allows you to mount the Fuel-Pack in a different position.

Specifications

Height

4.7 in

Width

8.3 in

Depth

3.3 in

Volume

1 L

Load

2.2 lb

Weight

5.6 oz

SKU

F9967

Waterproof

Yes ()

IP Ratings

The IP rating is an international standard that indicates how well a product is protected against dust and water.

The Fuel-Pack meets the IP53 protection rating:

Even when water splashes from the tyres or the road, the Fuel-Pack reliably protects your belongings – ideal for daily commutes in changeable weather or outdoor adventures in the rain.

All protection ratings at a glance

IP67

The product is dust-tight and protected against temporary immersion (up to 1 m for 30 min.).

IP64

The product is dust-tight and protected against splashing water from all directions.

IP54

The product is dust-protected and protected against splashing water from all directions.

IP53

The product is dust-protected and protected against spraying water up to 60° from vertical.

Material

PU-coated Nylon (PS21R, PS33)

Mounting System

Straps

Downloads

Instruction
Datasheet

Scope of delivery

1x top tube bag including mounting plate for screwing onto the top tube (direct mounting)

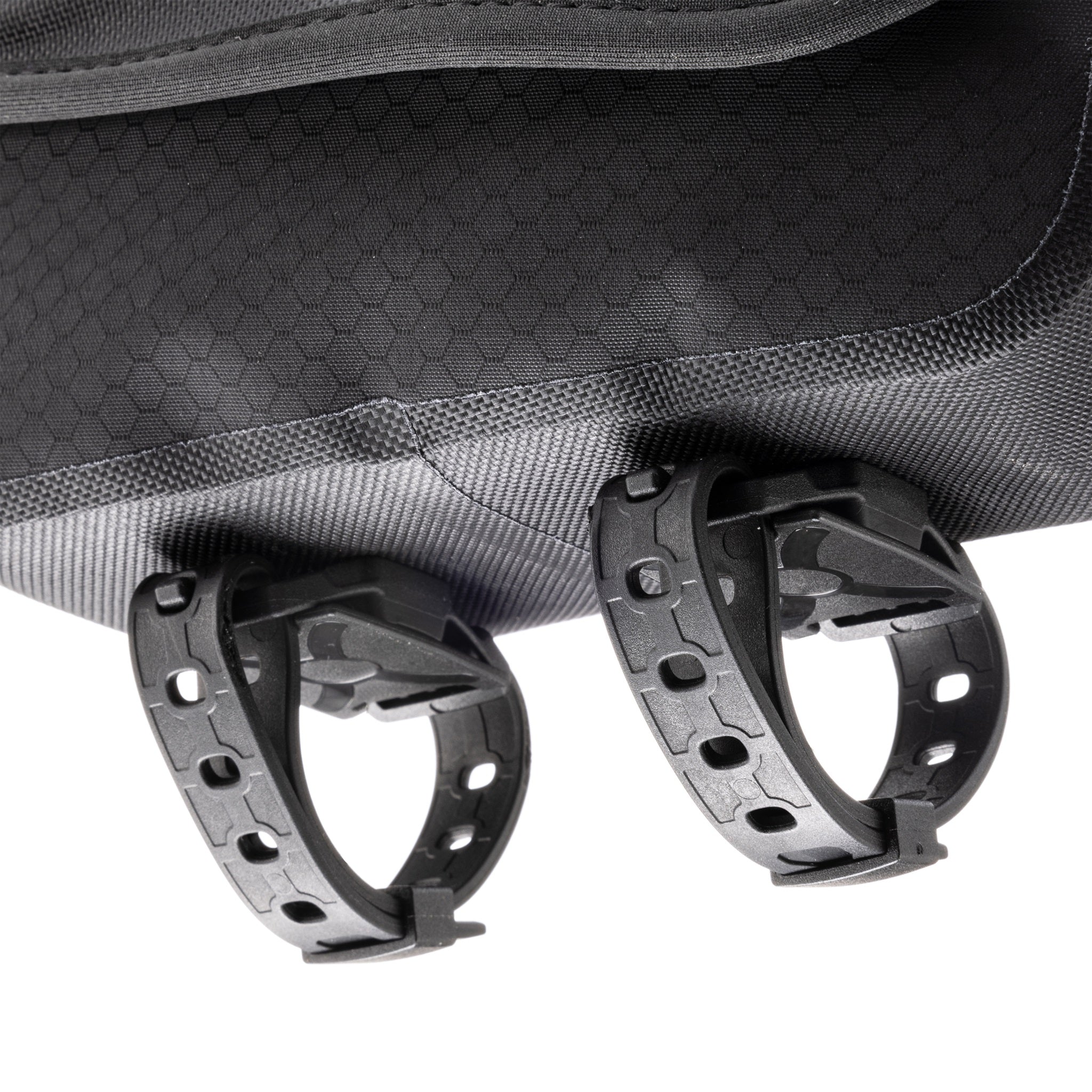

2x O-straps for alternative attachment, suitable for top tube diameters up to 60 mm

Warnings and safety information

Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 1 kg. If necessary, weigh your load to ensure that you do not exceed the maximum payload.
Risk of injury due to impaired steering. The distance between the bag and the stem must be at least 10 mm in order not to impair the steering. Check the minimum distance after installation.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Our mounting systems compared

The QL mounting systems on ORTLIEB panniers allow fast and secure mounting on racks. They are referred to as self-locking fixing systems, for the panniers provided with this system can be mounted to the racks in an easy and safe manner. In case of damage all components can be replaced easily.

To the detailed overview of the mounting systems

Quick-Lock3.1

Quick-Lock2.2

Quick-Lock2.1

The QL3.1 system secures the bag to the rack particularly quickly and easily and offers excellent carrying comfort away from the bike.

The evolution of the QL2.1 system, with higher payload and quick switching between different bikes.

ORTLIEB’s most proven mounting system, trusted by millions of satisfied cyclists.

Feature

Back of bag is free of protruding hooks

Quick, tool-free adjustment without reducer inserts

Tool-free adjustment

Maximum load

9 kg

12.5 kg

9 kg

Compatible racks

For racks with QL3.1-compatible mounting points. Can also be retrofitted with the QL3.1 Mounting Set.

Compatible with all conventional luggage racks

Compatible tube diameters

8–16 mm (with QL3.1 Mounting Set)

8–20 mm

The QL3.1 Mounting Set can be attached to racks with a tube diameter of up to 16 mm. For tube diameters from 11 to 16 mm, the adapter clamps are also required.

The hooks can be adjusted tool-free between 10 and 16 mm in 1 mm increments. With the QL2.1 hooks, 18 or 20 mm tubes can also be used.

The 16 mm hooks can be adjusted to 8, 10 and 12 mm using the included reducer inserts. With the QL2.1 hooks and anchoring hooks, 18 or 20 mm tubes can also be used.

More features

Lockable

—

with the QL2-Lock or the anti-theft device

(not included)

with the QL2-Lock or the anti-theft device

(not included)

One-handed operation possible

Mounting components

On the rack

On the bag

Anti-scratch coating

Not required

On upper hooks, lower hook & lower hook rail

On inserts (upper hooks) & lower hook rail

All individual parts available as spare parts

View all Quick-Lock3.1 products

View all Quick-Lock2.2 products

View all Quick-Lock2.1 products

Compare similar products

Compare all bikepacking bags

Compact top tube bag with magnetic closure for snacks & smartphone

Compact top tube bag with magnetic lid and mobile phone holder

Compact frame bag with large opening thanks to roll closure

$85

$105

155 – $175

Single/Pair Bag

—

Volume

1 L

1.5 L

3 L, 4 L

Mounting System

Straps

Mounting-Set Toptube Bags

Straps

Weight

5.6 oz

8.8 oz

6.9 – 7.8 oz

Material

Nylon

Weather protection & closure

Closure

Flap closure

Roll-top closure

Waterproof

100 % Waterproof

IP Rating

IP53
The product is dust-protected and protected against spraying water up to 60° from vertical.

IP64
The product is dust-tight and protected against splashing water from all directions.

Mounting and carrying options

2-in-1 Bag

Mounted on

Top tube

Top tube

Frame triangle

Carry Options

—

Back Padding

—

Chest Strap

Waist Strap

Self-Standing

Storage & organization

Inner Pockets

Laptop Compartment

—

External Pockets

—

Clear Pocket

Features & adjustment

External Attachment Points

—

Compression Options

—

Hydration Tube Port

Reflective Elements

Dimensions

Height

4.7 in

5.1 – 5.9 in

Width

8.3 in

9.1 in

15.7 – 19.7 in

Depth

3.3 in

2.4 in

Diameter

—

Length

—

Max. Load

2.2 lb

6.6 lb

View product page

Frequently Asked Questions

How is the Fuel-Pack mounted on the bike?

If your bike has threaded eyelets on the top tube, you can screw the bag directly onto them. Alternatively, you can attach the Fuel-Pack using the included rubberized straps. These protect the frame and allow secure mounting even on bikes without threads or with carbon frames. For frames with different drilling positions, there is also an optional offset plate that allows you to adjust the bag’s position individually.

To the Offset Plate

How does the Fuel-Pack differ from the Toptube-Bag?

Both bags are compact, waterproof top-tube bags with magnetic lid closures that provide quick access to snacks, smartphones, or tools while riding.

The Fuel-Pack is designed to be particularly lightweight and minimalist. It is either bolted directly to the bike or attached using rubberized straps and stays firmly in place.
The Toptube-Bag, on the other hand, offers a flexible solution with the Tube-Lock system for those who want to remove their bag quickly or switch it between different bikes. It is slightly larger, features an integrated smartphone holder on the lid, and offers a bit more storage space with 1.5 liters.

Is the Fuel-Pack waterproof?

The Fuel-Pack is waterproof according to protection class IP53. This rating indicates:

The product is dust-protected and protected against spraying water up to 60° from vertical. Even when water splashes from the tyres or the road, the Fuel-Pack reliably protects your belongings – ideal for daily commutes in changeable weather or outdoor adventures in the rain.

More about waterproofness

How securely does the Fuel-Pack sit on the bike during rides on rough terrain?

The Fuel-Pack sits securely on the bike even on rough terrain thanks to its well-designed mounting system. You can mount it either with the rubberized hole straps or directly via the threaded inserts on the top tube. Both options ensure a firm, wobble-free fit even on rough trails.

Can I use the Fuel-Pack on a carbon frame?

Yes, the Fuel-Pack is suitable for mounting on carbon frames.

Where is the Fuel-Pack manufactured?

The Fuel-Pack is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

Is the Fuel-Pack worth the price?

ORTLIEB products stand for durability and repairability. The Fuel-Pack is manufactured in our factory in Heilsbronn, Germany. We source materials locally, regionally, or internationally depending on what meets our high standards. We invest time in development to ensure the functionality of every detail.

Thanks to long-lasting materials, the bag is a reliable companion. Its lifespan puts the purchase price into perspective, especially since we offer a five-year warranty on our products. A wide range of repair and upgrade options further improves the price-performance ratio.

Repair before replacement: Every product is designed to be easy to repair and can, in most cases, be serviced by our Customer Service team in Heilsbronn. This extends its lifespan and conserves resources.
